Part number: OSE-TFMHP-30C05-193

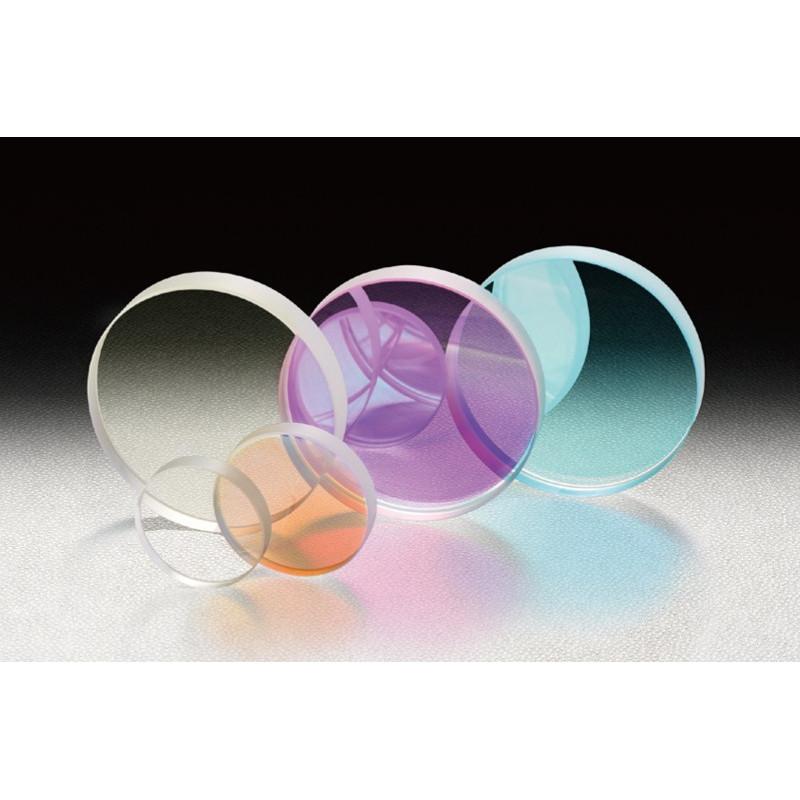

Type: Laser Line Mirrors
Wavelength range [nm]: 193 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 95
Coating: Dielctric
Laser Damage Threshold (J/cm²): 2
Diameter [mm]: 30
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-50C08-193
Type: Laser Line Mirrors
Wavelength range [nm]: 193 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 95
Coating: Dielctric
Laser Damage Threshold (J/cm²): 2
Diameter [mm]: 50
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-25.4C05-193
Type: Laser Line Mirrors
Wavelength range [nm]: 193 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 95
Coating: Dielctric
Laser Damage Threshold (J/cm²): 2
Diameter [mm]: 25.4
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-30C05-248
Type: Laser Line Mirrors
Wavelength range [nm]: 248 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 98
Coating: Dielctric
Laser Damage Threshold (J/cm²): 4
Diameter [mm]: 30
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-50C08-248
Type: Laser Line Mirrors
Wavelength range [nm]: 248 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 98
Coating: Dielctric
Laser Damage Threshold (J/cm²): 4
Diameter [mm]: 50
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-25.4C05-248
Type: Laser Line Mirrors
Wavelength range [nm]: 248 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 98
Coating: Dielctric
Laser Damage Threshold (J/cm²): 4
Diameter [mm]: 25.4
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-30C05-266
Type: Laser Line Mirrors
Wavelength range [nm]: 266 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 98
Coating: Dielctric
Laser Damage Threshold (J/cm²): 5
Diameter [mm]: 30
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-50C08-266
Type: Laser Line Mirrors
Wavelength range [nm]: 266 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 98
Coating: Dielctric
Laser Damage Threshold (J/cm²): 5
Diameter [mm]: 50
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-25.4C05-266
Type: Laser Line Mirrors
Wavelength range [nm]: 266 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 98
Coating: Dielctric
Laser Damage Threshold (J/cm²): 5
Diameter [mm]: 25.4
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-30C05-355
Type: Laser Line Mirrors
Wavelength range [nm]: 355 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 99
Coating: Dielctric
Laser Damage Threshold (J/cm²): 8
Diameter [mm]: 30
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-50C08-355
Type: Laser Line Mirrors
Wavelength range [nm]: 355 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 99
Coating: Dielctric
Laser Damage Threshold (J/cm²): 8
Diameter [mm]: 50
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-25.4C05-355
Type: Laser Line Mirrors
Wavelength range [nm]: 355 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 99
Coating: Dielctric
Laser Damage Threshold (J/cm²): 8
Diameter [mm]: 25.4
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-30C05-532
Type: Laser Line Mirrors
Wavelength range [nm]: 532 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 99
Coating: Dielctric
Laser Damage Threshold (J/cm²): 26.5
Diameter [mm]: 30
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-50C08-532
Type: Laser Line Mirrors
Wavelength range [nm]: 532 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 99
Coating: Dielctric
Laser Damage Threshold (J/cm²): 26.5
Diameter [mm]: 50
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-25.4C05-532
Type: Laser Line Mirrors
Wavelength range [nm]: 532 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 99
Coating: Dielctric
Laser Damage Threshold (J/cm²): 26.5
Diameter [mm]: 25.4
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-30C05-1064
Type: Laser Line Mirrors
Wavelength range [nm]: 1064 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 99
Coating: Dielctric
Laser Damage Threshold (J/cm²): 28
Diameter [mm]: 30
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-50C08-1064
Type: Laser Line Mirrors
Wavelength range [nm]: 1064 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 99
Coating: Dielctric
Laser Damage Threshold (J/cm²): 28
Diameter [mm]: 50
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Part number: OSE-TFMHP-25.4C05-1064
Type: Laser Line Mirrors
Wavelength range [nm]: 1064 - NV
Angle of incidence [°]: 45
Reflectivity [%]: 99
Coating: Dielctric
Laser Damage Threshold (J/cm²): 28
Diameter [mm]: 25.4
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
