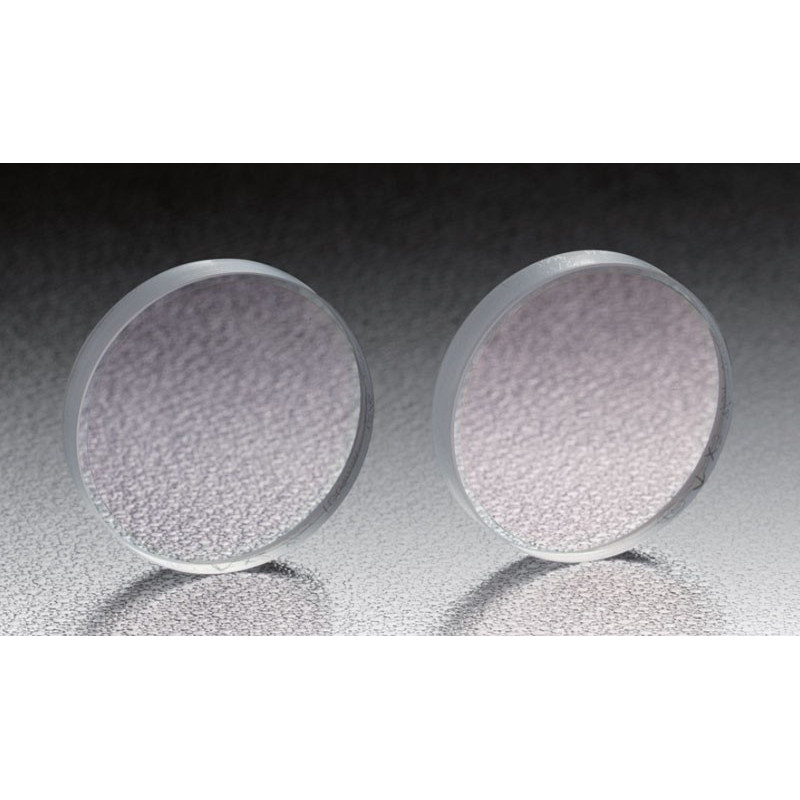

High Reflective Mirror

Reference number: OSE-TFHSM-25C06-532

The super mirror is an ultra-high power mirror whose surface reflectance is as close to 1 (100%) as possible to increase the power of the resonator.

Wavelength Range in nm

Diameter in mm

Wavelength Range in nm

Diameter in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Type: Paraboloid Mirrors

Angle of incidence [°]: 0
Coating: Dielctric

Material: Synthetic Fused Silica

Flatness: λ/10

Surface Quality (Scratch-Dig): 10-5

Part number: OSE-TFHSM-25C06-532

Type: Paraboloid Mirrors

Wavelength range [nm]: 532 - 0
Angle of incidence [°]: 0
Reflectivity [%]: 99.995
Coating: Dielctric

Laser Damage Threshold (J/cm²): NV

Diameter [mm]: 25
Thickness of the optic [mm]: 6
Curvature [mm]: ∞

Material: Synthetic Fused Silica

Flatness: λ/10

Surface Quality (Scratch-Dig): 10-5

Downloads

Part number: OSE-TFHSM-30C06-532
Type: Paraboloid Mirrors
Wavelength range [nm]: 532 - 0
Angle of incidence [°]: 0
Reflectivity [%]: 99.995
Coating: Dielctric
Laser Damage Threshold (J/cm²): NV
Diameter [mm]: 30
Thickness of the optic [mm]: 6
Curvature [mm]: ∞
Material: Synthetic Fused Silica
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Downloads
OSE-TFHSM.pdf
DOWNLOAD
Opt_Mirrors_.zip
DOWNLOAD

Part number: OSE-TFHSM-50C08-532
Type: Paraboloid Mirrors
Wavelength range [nm]: 532 - 0
Angle of incidence [°]: 0
Reflectivity [%]: 99.995
Coating: Dielctric
Laser Damage Threshold (J/cm²): NV
Diameter [mm]: 50
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: Synthetic Fused Silica
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Downloads
OSE-TFHSM.pdf
DOWNLOAD
Opt_Mirrors_.zip
DOWNLOAD

Part number: OSE-TFHSM-25.4C06-532
Type: Paraboloid Mirrors
Wavelength range [nm]: 532 - 0
Angle of incidence [°]: 0
Reflectivity [%]: 99.995
Coating: Dielctric
Laser Damage Threshold (J/cm²): NV
Diameter [mm]: 25.4
Thickness of the optic [mm]: 6
Curvature [mm]: ∞
Material: Synthetic Fused Silica
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Downloads
OSE-TFHSM.pdf
DOWNLOAD
Opt_Mirrors_.zip
DOWNLOAD

Part number: OSE-TFHSM-12.7C06-532
Type: Paraboloid Mirrors
Wavelength range [nm]: 532 - 0
Angle of incidence [°]: 0
Reflectivity [%]: 99.995
Coating: Dielctric
Laser Damage Threshold (J/cm²): NV
Diameter [mm]: 12.7
Thickness of the optic [mm]: 6
Curvature [mm]: ∞
Material: Synthetic Fused Silica
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Downloads
OSE-TFHSM.pdf
DOWNLOAD
Opt_Mirrors_.zip
DOWNLOAD

Part number: OSE-TFHSM-25C06-1064
Type: Paraboloid Mirrors
Wavelength range [nm]: 532 - 0
Angle of incidence [°]: 0
Reflectivity [%]: 99.999
Coating: Dielctric
Laser Damage Threshold (J/cm²): NV
Diameter [mm]: 25
Thickness of the optic [mm]: 6
Curvature [mm]: ∞
Material: Synthetic Fused Silica
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Downloads
OSE-TFHSM.pdf
DOWNLOAD
Opt_Mirrors_.zip
DOWNLOAD

Part number: OSE-TFHSM-30C06-1064
Type: Paraboloid Mirrors
Wavelength range [nm]: 1064 - 0
Angle of incidence [°]: 0
Reflectivity [%]: 99.999
Coating: Dielctric
Laser Damage Threshold (J/cm²): NV
Diameter [mm]: 30
Thickness of the optic [mm]: 6
Curvature [mm]: ∞
Material: Synthetic Fused Silica
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Downloads
OSE-TFHSM.pdf
DOWNLOAD
Opt_Mirrors_.zip
DOWNLOAD

Part number: OSE-TFHSM-50C08-1064
Type: Paraboloid Mirrors
Wavelength range [nm]: 1064 - 0
Angle of incidence [°]: 0
Reflectivity [%]: 99.999
Coating: Dielctric
Laser Damage Threshold (J/cm²): NV
Diameter [mm]: 50
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: Synthetic Fused Silica
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Downloads
OSE-TFHSM.pdf
DOWNLOAD
Opt_Mirrors_.zip
DOWNLOAD

Part number: OSE-TFHSM-25.4C06-1064
Type: Paraboloid Mirrors
Wavelength range [nm]: 1064 - 0
Angle of incidence [°]: 0
Reflectivity [%]: 99.999
Coating: Dielctric
Laser Damage Threshold (J/cm²): NV
Diameter [mm]: 25.4
Thickness of the optic [mm]: 6
Curvature [mm]: ∞
Material: Synthetic Fused Silica
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Downloads
OSE-TFHSM.pdf
DOWNLOAD
Opt_Mirrors_.zip
DOWNLOAD

Part number: OSE-TFHSM-12.7C06-1064
Type: Paraboloid Mirrors
Wavelength range [nm]: 1064 - 0
Angle of incidence [°]: 0
Reflectivity [%]: 99.999
Coating: Dielctric
Laser Damage Threshold (J/cm²): NV
Diameter [mm]: 12.7
Thickness of the optic [mm]: 6
Curvature [mm]: ∞
Material: Synthetic Fused Silica
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Downloads
OSE-TFHSM.pdf
DOWNLOAD
Opt_Mirrors_.zip
DOWNLOAD

The super mirror is an ultra-high power mirror whose surface reflectance is as close to 1 (100%) as possible to increase the power of the resonator.
