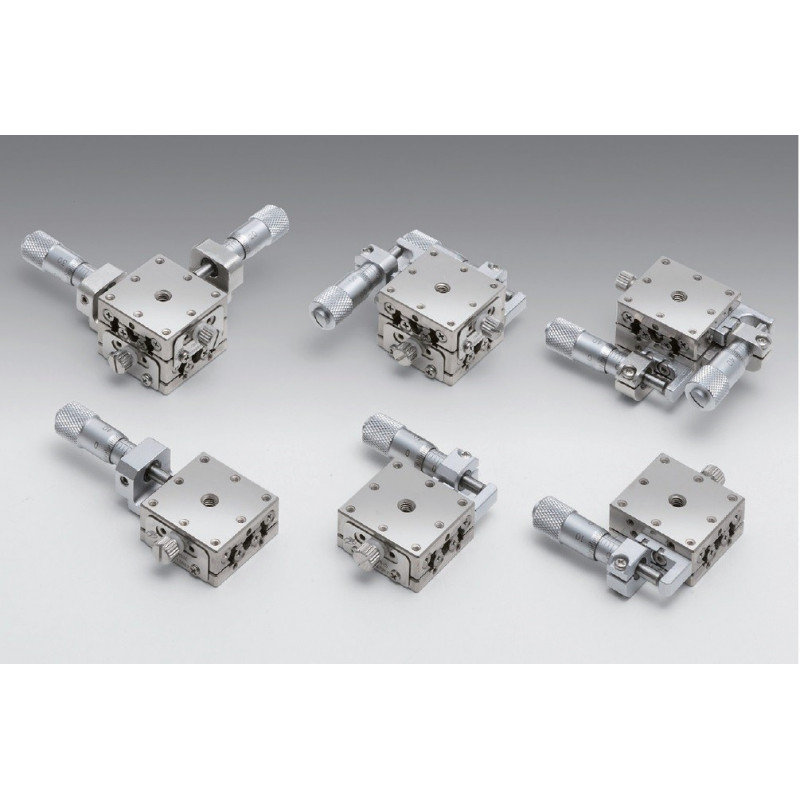

OSE-TSDH-252W: XY axis, 25 x 25 mm

Reference number: OSE-TSDH-252WC

Model

Micrometer Position

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Type: XY axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [± mm]: 3
Travel y-axis [± mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Electroless nickel
Load Capacity [N]: 59.8
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch [´´]: 30
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 4
Max. Moment Capacity / Roll [Nm]: 4
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 3.4
Moment Stiffness / Roll [´´/Ncm]: 3.4
Moment Stiffness / Yaw [´´/Ncm]: 3.2
Parallelism [µm]: 50
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.14

Downloads

OSE-TSDH-251_252W.pdf

OSE-TSDH-252WC_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Electroless nickel
Load Capacity [N]: 59.8
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch[´´]: 30
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 4
Max. Moment Capacity / Roll [Nm]: 4
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 3.4
Moment Stiffness / Roll [´´/Ncm]: 3.4
Moment Stiffness / Yaw [´´/Ncm]: 3.2
Parallelism [µm]: 50
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.14

Downloads

OSE-TSDH-251_252W.pdf

OSE-TSDH-252WS_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Electroless nickel
Load Capacity [N]: 59.8
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch[´´]: 30
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 4
Max. Moment Capacity / Roll [Nm]: 4
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 3.4
Moment Stiffness / Roll [´´/Ncm]: 3.4
Moment Stiffness / Yaw [´´/Ncm]: 3.2
Parallelism [µm]: 50
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.14

Downloads

OSE-TSDH-252WSR_STP.zip

ManualStages.zip

Actuators.pdf
