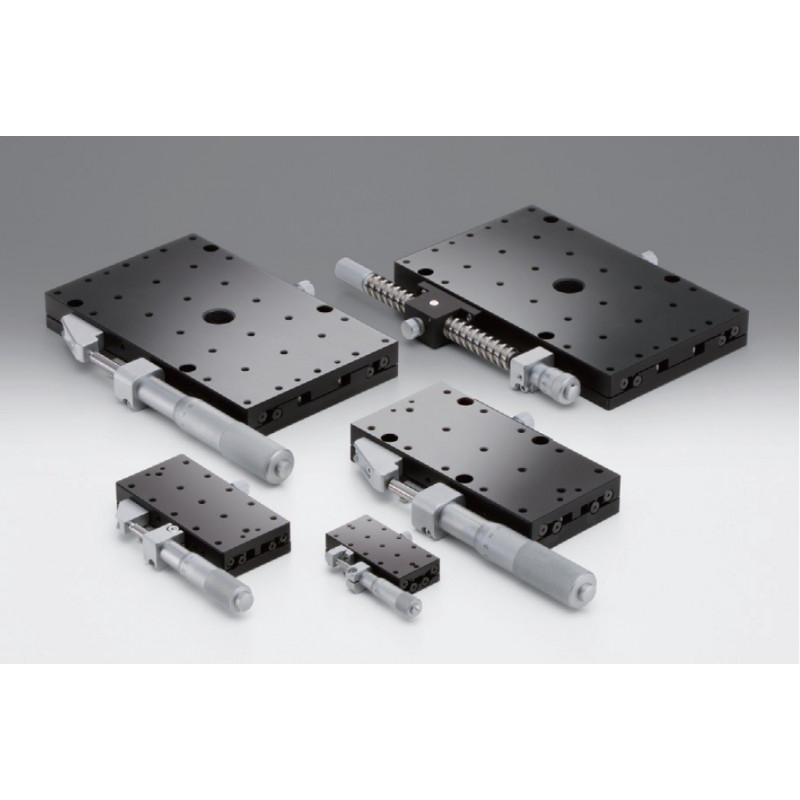

OSE-TSD-651-M6/UU: X axis, 65 x 120 mm

Reference number: OSE-TSD-65121C-M6

Table Size in mm

Version

Micrometer Position

Table Size in mm

Version

Micrometer Position

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Type: X axis
Tabel Size [mm]: 65×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 392
Travel Accuracy / Straightness [µm]: 3
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 19.6
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.1
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 1

Downloads

OSE-TSD-651.pdf

OSE-TSD-65121C-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [± mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 392
Travel Accuracy / Straightness [µm]: 3
Travel Accuracy / Pitch [´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 19.6
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.1
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 1

Downloads

OSE-TSD-651-M6_UU.pdf

OSE-TSD-65121S-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×170
Maximum XYZ-travel [mm]: 25
Travel x-axis [±mm]: 25
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 490
Travel Accuracy / Straightness [µm]: 5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 29.4
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 14.7
Moment Stiffness / Pitch [´´/Ncm]: 0.07
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 50
Running Parallelism: 15
Gewicht in kg: 1.7

Downloads

OSE-TSD-652.pdf

OSE-TSD-65171S-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 392
Travel Accuracy / Straightness [µm]: 3
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 19.6
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.1
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 1

Downloads

OSE-TSD-651-M6_UU.pdf

OSE-TSD-65121CUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 392
Travel Accuracy / Straightness [µm]: 3
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 19.6
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.1
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 1

Downloads

OSE-TSD-651-M6_UU.pdf

OSE-TSD-65121SUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×170
Maximum XYZ-travel [mm]: 25
Travel x-axis [±mm]: 25
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 490
Travel Accuracy / Straightness [µm]: 5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 29.4
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 14.7
Moment Stiffness / Pitch [´´/Ncm]: 0.07
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 50
Running Parallelism: 15
Gewicht in kg: 1.7

Downloads

OSE-TSD-651-M6_UU.pdf

OSE-TSD-65171SUU_STP.zip

ManualStages.zip

Actuators.pdf
