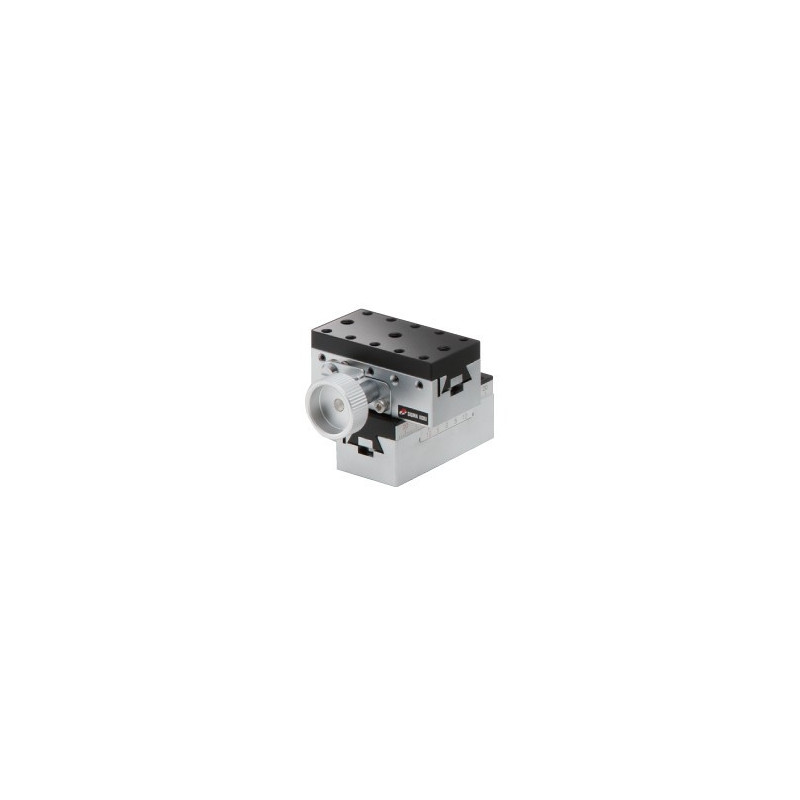

OSE-TARW-25502: XY axis, 25 x 50 mm

search

Reference number: OSE-TARW-25502

€287.70
Tax excluded
Quantity
Delivery

alt

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

  • Type: XY axis
  • Tabel Size [mm]: 25 x 50
  • Maximum XYZ-travel [mm]: 10
  • Travel x-axis [± mm]: 10
  • Travel y-axis [± mm]: 10
  • Lead of Actuator [mm]: about 20
  • Vernier Scale: 0.1
  • Bearing type: Dovetail method
  • Primary Material: Brass
  • Finish: Super black chrome
  • Screw Pitch [mm]: -
  • Load Capacity [N]: 78.5
  • Travel Accuracy / Straightness [µm]: 20
  • Max. Moment Capacity / Pitch [Nm]: 0.6
  • Max. Moment Capacity / Roll [Nm]: 0.6
  • Max. Moment Capacity / Yaw [Nm]: 1
  • Moment Stiffness / Pitch [´´/Ncm]: 3.67
  • Moment Stiffness / Roll [´´/Ncm]: 3.67
  • Parallelism [µm]: 100
  • Gewicht in kg: 0.44
