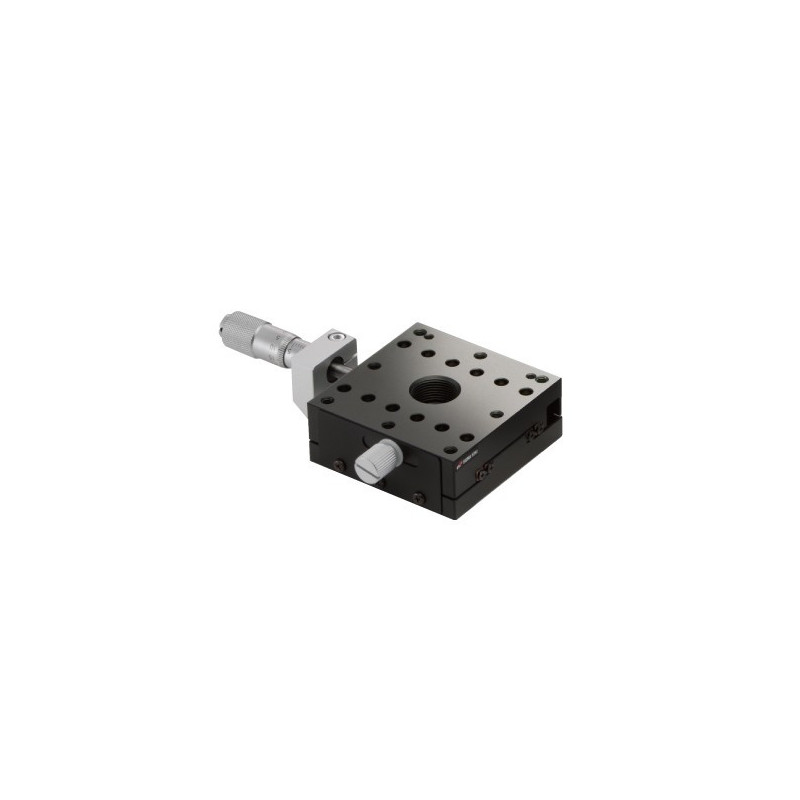

OSE-TAM-601: X axis, 60 x 60 mm

Reference number: OSE-TAM-601C

Model

Micrometer Position

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Type: X axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 2
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 5.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 5.8
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.25
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.3

Downloads

OSE-TAM-801_802.pdf

OSE-TAM-601C_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 2
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 5.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 5.8
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.25
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.3

Downloads

OSE-TAM-801_802.pdf

OSE-TAM-601S_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 2
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 5.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 5.8
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.25
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.3

Downloads

OSE-TAM-801_802.pdf

OSE-TAM-601SR_STP.zip

ManualStages.zip

Actuators.pdf
