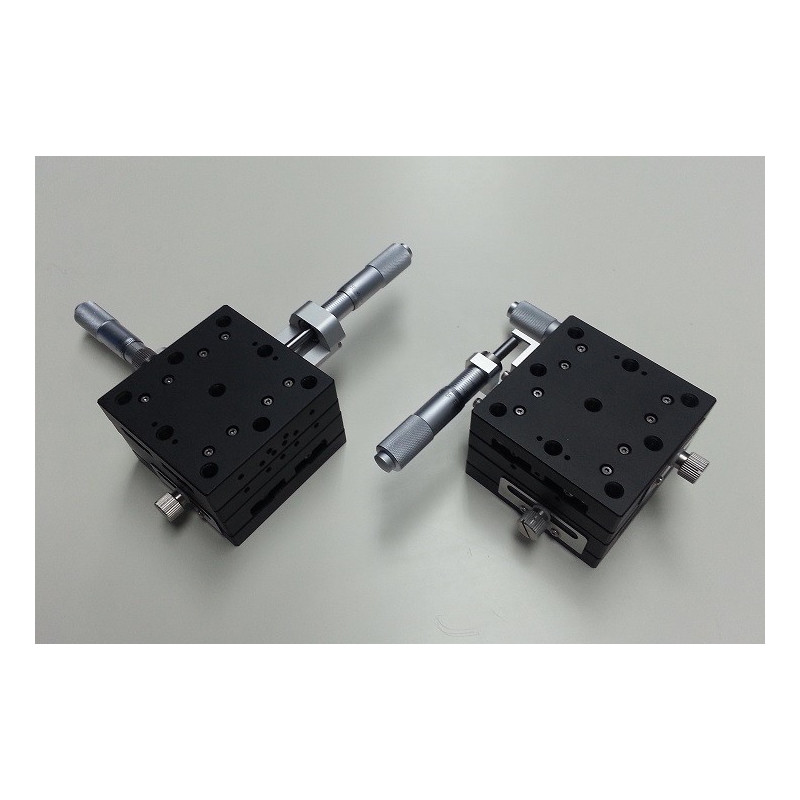

OSE-TADC-652W: XY axis, 65 x 65 mm

Reference number: OSE-TADC-652WC25-M6

Model

Version

Micrometer Position

Model

Version

Micrometer Position

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Type: XY axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Travel y-axis[± mm]: 12.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.6
Moment Stiffness / Roll [´´/Ncm]: 0.6
Parallelism [µm]: 50
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.62

Downloads

OSE-TADC-651_652W.pdf

OSE-TADC-652WC25-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Travel y-axis[± mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.6
Moment Stiffness / Roll [´´/Ncm]: 0.6
Parallelism [µm]: 50
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.62

Downloads

OSE-TADC-651_652W.pdf

OSE-TADC-652WS25-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Travel y-axis[± mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.6
Moment Stiffness / Roll [´´/Ncm]: 0.6
Parallelism [µm]: 50
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.62

Downloads

OSE-TADC-L.pdf

OSE-TADC-652WSR25-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Travel y-axis[± mm]: 12.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.6
Moment Stiffness / Roll [´´/Ncm]: 0.6
Parallelism [µm]: 50
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.62

Downloads

OSE-TADC-651_652W.pdf

OSE-TADC-652WC25UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Travel y-axis[± mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.6
Moment Stiffness / Roll [´´/Ncm]: 0.6
Parallelism [µm]: 50
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.62

Downloads

OSE-TADC-651_652W.pdf

OSE-TADC-652WS25UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Travel y-axis[± mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 4.9
Max. Moment Capacity / Roll [Nm]: 4.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.6
Moment Stiffness / Roll [´´/Ncm]: 0.6
Parallelism [µm]: 50
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.62

Downloads

OSE-TADC-L.pdf

OSE-TADC-652WSR25UU_STP.zip

ManualStages.zip

Actuators.pdf
