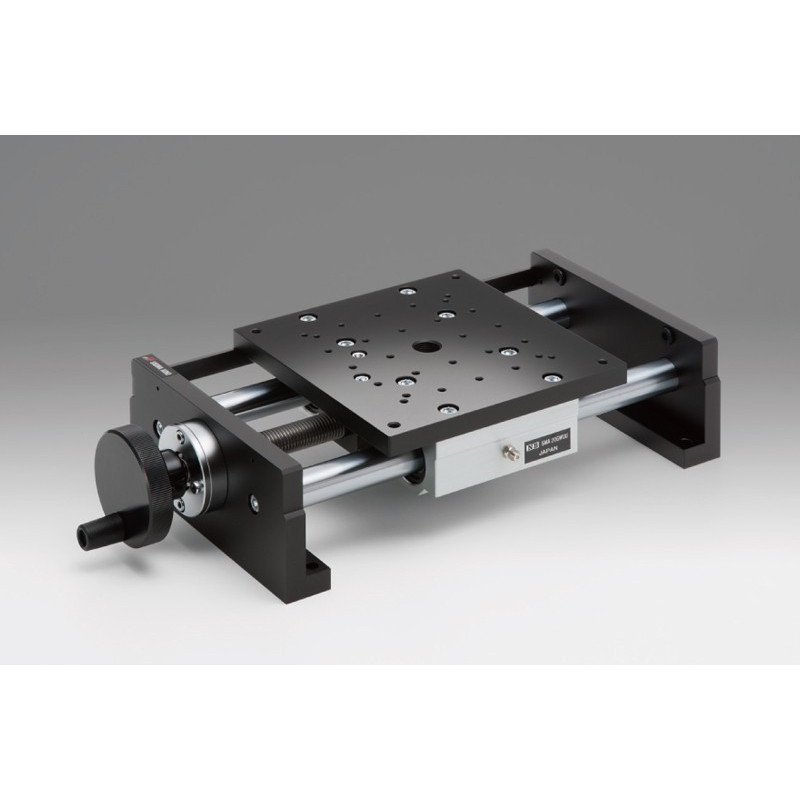

OSE-LST: X axis, 160 x 160 mm

Reference number: OSE-LST-16100

Option

Version

Travel in mm

Option

Version

Travel in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Type: X axis
Tabel Size [mm]: 160×160
Maximum XYZ-travel [mm]: 50
Travel x-axis [±mm]: 50
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 2
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 100
Gewicht in kg: 4.8

Downloads

OSE-LST.pdf

OSE-LST-16100_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×160
Maximum XYZ-travel [mm]: 100
Travel x-axis [±mm]: 100
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 2
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 150
Gewicht in kg: 5.5

Downloads

OSE-LST.pdf

OSE-LST-16200_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×161
Maximum XYZ-travel [mm]: 200
Travel x-axis [±mm]: 200
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 5
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 200
Gewicht in kg: 7

Downloads

OSE-LST.pdf

OSE-LST-16400_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×160
Maximum XYZ-travel [mm]: 50
Travel x-axis [±mm]: 50
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 2
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 100
Gewicht in kg: 4.8

Downloads

OSE-LST.pdf

OSE-LST-16100-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×160
Maximum XYZ-travel [mm]: 50
Travel x-axis [±mm]: 50
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 2
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 100
Gewicht in kg: 4.8

Downloads

OSE-LST.pdf

OSE-LST-16100UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×160
Maximum XYZ-travel [mm]: 100
Travel x-axis [±mm]: 100
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 2
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 150
Gewicht in kg: 5.5

Downloads

OSE-LST.pdf

OSE-LST-16200-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×160
Maximum XYZ-travel [mm]: 100
Travel x-axis [±mm]: 100
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 2
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 150
Gewicht in kg: 5.5

Downloads

OSE-LST.pdf

OSE-LST-16200UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×161
Maximum XYZ-travel [mm]: 200
Travel x-axis [±mm]: 200
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 5
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 200
Gewicht in kg: 7

Downloads

OSE-LST.pdf

OSE-LST-16400-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×161
Maximum XYZ-travel [mm]: 200
Travel x-axis [±mm]: 200
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 5
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 200
Gewicht in kg: 7

Downloads

OSE-LSV.pdf

OSE-LST-16400UU_STP.zip

ManualStages.zip

Actuators.pdf
