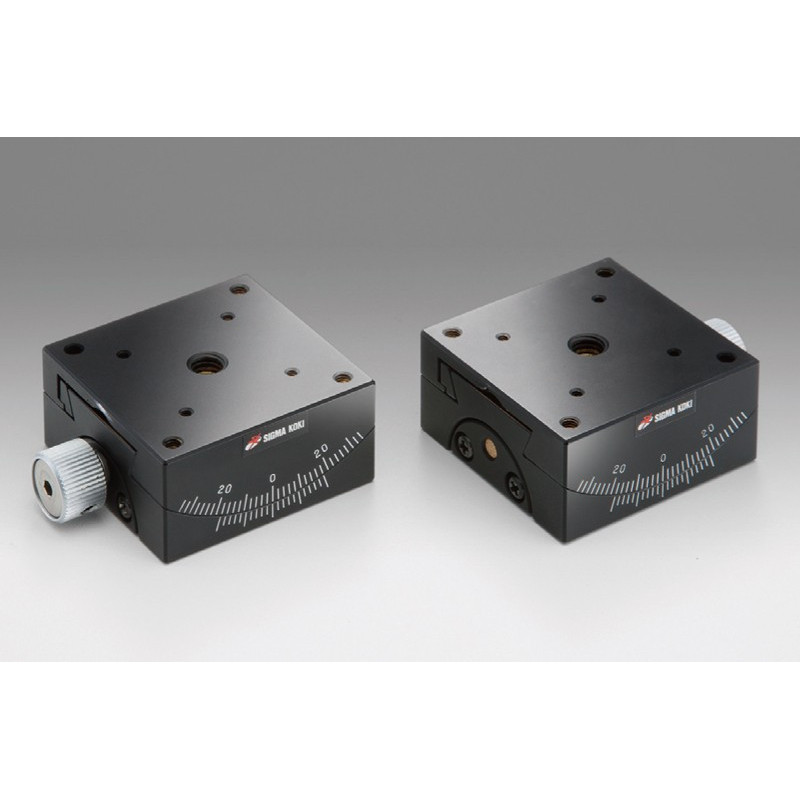

OSE-GOH-40A: Goniometers, 40 x 40 mm

Reference number: OSE-GOH-40A15

€405.20

Tax excluded

Model

Version

Rotation Center Height in mm

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€814.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€82.20
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€269.70
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€291.50

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 15±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 2.83
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 50
Gewicht in kg: 0.25

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40A15_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 35±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.74
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 50
Gewicht in kg: 0.2

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40A35_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 51±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.27
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 50
Gewicht in kg: 0.18

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-40A51_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 15±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 2.83
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 50
Gewicht in kg: 0.25

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40A15R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 35±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.74
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 50
Gewicht in kg: 0.2

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40A35R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 51±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.27
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 50
Gewicht in kg: 0.18

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOH-40A51R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 15±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 2.83
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 50
Gewicht in kg: 0.25

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40A15UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 15±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 2.83
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 50
Gewicht in kg: 0.25

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40A15RUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 35±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.74
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 50
Gewicht in kg: 0.2

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40A35UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 35±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.74
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 50
Gewicht in kg: 0.2

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40A35RUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 51±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.27
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 50
Gewicht in kg: 0.18

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40A51UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 51±0.1
Angle Range(Upper) Beta axis [ ° ]: -
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.27
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?0.1 or less
Bearing type: Dovetail slide method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 50
Gewicht in kg: 0.18

Downloads

OSE-GOH-40A_GOH-40B.pdf

OSE-GOH-40A51RUU_STP.zip

ManualStages.zip

Actuators.pdf
