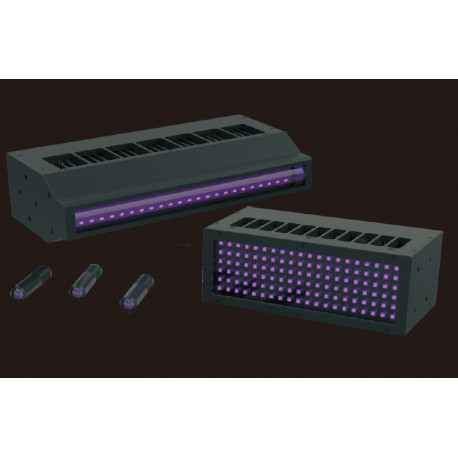

OPT UV Curing Lights

OPT UV Curing-Beleuchtungen
search
  • OPT UV Curing-Beleuchtungen
  • OPT UV Curing-Beleuchtungen

Reference number: OPT-Curing

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

OPT-CPIG Curing Spot Lights

Product Features:

  • 4 mm, 6 mm, 8 mm, 10 mm, 15 mm and different sizes of spots can be selected
  • Select cylinder lens to make the lights focus and emit high energy
  • Suitable for high speed applications by the use of high flexibility and torsion resistant wire
  • At the working distance of 10 mm, the light intensity can reach 4700 mW/cm²

Part number

Waveband

Output [W]

Channel

Compatible Controller

OPT-CPIG1203-04

365 nm / 385 nm / 405 nm

3.5

1





OPT-DPA1005

OPT-CPIG1203-06

365 nm / 385 nm / 405 nm

3.5

1

OPT-CPIG1203-08

365 nm / 385 nm / 405 nm

3.5

1

OPT-CPIG1203-10

365 nm / 385 nm / 405 nm

3.5

1

OPT-CPIG1203-15

365 nm / 385 nm / 405 nm

3.5

1


OPT-CLSG Curing Line Scan Lights

Product Features:

  • Spot light effectively emit high energy by using the high penetrable quartz cylinder lens
  • Thanks to the unique air-cooled structured design, it can dissipate the generated heat more stably in continuous mode
  • At the working distance of 20 mm, the light intensity can reach 5500 mW/cm²

Part number

Waveband

Output [W]

Channel

Compatible Controller

OPT-CLSG60

365 nm / 385 nm / 405 nm

24

1

OPT-DPA1024

OPT-CLSG105

365 nm / 385 nm / 405 nm

48

1









OPT-DPA6024

OPT-CLSG150

365 nm / 385 nm / 405 nm

72

1

OPT-CLSG195

365 nm / 385 nm / 405 nm

96

1

OPT-CLSG240

365 nm / 385 nm / 405 nm

120

1

OPT-CLSG285

365 nm / 385 nm / 405 nm

144

2

OPT-CLSG330

365 nm / 385 nm / 405 nm

168

2

OPT-CLSG375

365 nm / 385 nm / 405 nm

192

2

OPT-CLSG420

365 nm / 385 nm / 405 nm

216

2

OPT-CLSG465

365 nm / 385 nm / 405 nm

240

2



OPT-CFLG Curing Flat Lights

Product Features:

  • Uniform illumination, high power and density LED array
  • At the working distance of 10 mm, the light intensity can reach 2200 mW/cm²

Part number

Waveband

Output [W]

Channel

Compatible Controller

OPT-CFLG8658

365 nm / 385 nm / 405 nm

120

1

OPT-DPA6024

OPT-CFLG15658

365 nm / 385 nm / 405 nm

240

2

OPT-CFLG22658

365 nm / 385 nm / 405 nm

360

1

OPT-DPA20024

OPT-CFLG29658

365 nm / 385 nm / 405 nm

480

1

OPT-CFLG156100

365 nm / 385 nm / 405 nm

480

1
