Reference number: SLP-1000

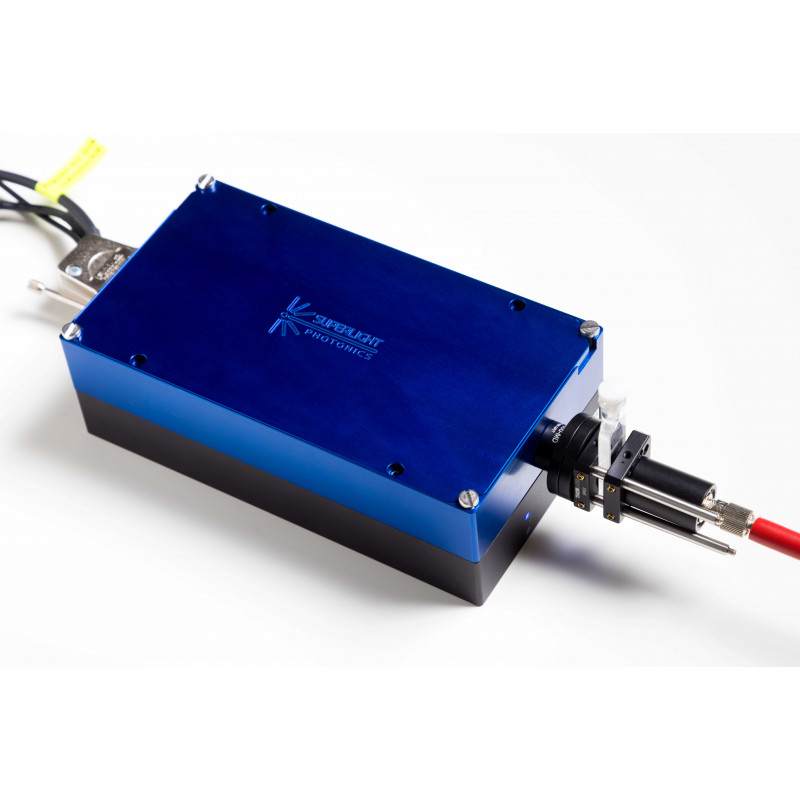

SLP-1000 ON-CHIP SUPERCONTINUUM LASER
The SLP-1000 is the industry’s first portable and maintenance-free wideband laser. Its smooth, wide and coherent spectral output offers an unrivalled light source.
Need more info?
Contact our expert.
Laser & Light Sources Team
Phone: +49 8153 405-11
Description
KEY FEATURES
Standard lasers emit highly focused (and coherent) beams of monochromatic light (single wavelength), resulting in a pure and well-defined color, crucial for various applications.
However, emission at only one wavelength also has limitations, and wideband lasers, also called SCG-lasers (supercontinuum lasers) have been developed with a significant advantage: a full spectrum of wavelengths with all the characteristics of a laser across the spectrum, in essence a multitude of monochromatic lasers in one.
The vastness of new information that can be accessed with this spectrum carries large advantages in various applications such as imaging, sensing, ranging and spectroscopy. Unfortunately, wideband lasers today are bulky and expensive…
Here comes the SLP-1000, generating unprecedented spectral power at the 3 dB range and femtoseconds compressed pulse duration all on chip! Which can be used in both stationary (small laboratory) and mobile, handheld and battery operated applications.
| Spectral coverage | 700 nm |
| Output Power | 2.5 nm |
| Pulse Length | 20 fs |
| RIN | <10e-14 1/Hz |
| Repetition Rate | 100 MHz |
| Total Power Stability | 0.5 % |
| Output Beam | 1.8 mm |
| Output Port Thread | SM05 |
| Power Supply | 12 V |
| Current | 1 A |
| Power Consumption | 12 W |
| Warm-up Time | 60 s |
| Operating Temperature | 20°C |
| Dimensions | 175x96x52 mm |
| Weight | 0.9 kg |
