Reference number: SWS-LWS-C-1500

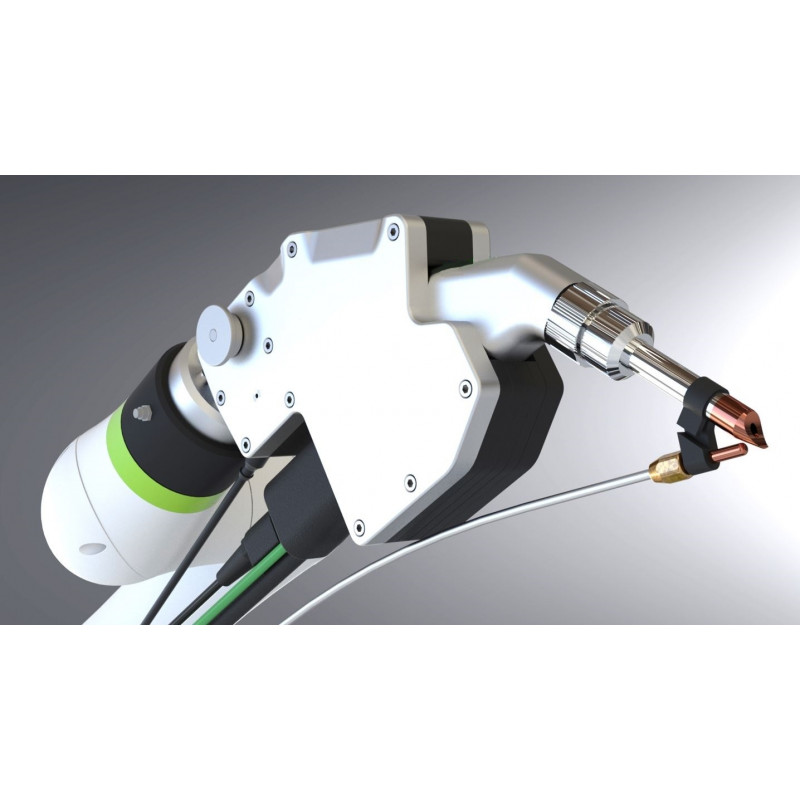

The SWS-LWS-C-1500 robotic gripper offers a plug-and-play solution for automatic welding processes with handheld laser welding systems.

alt

Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11

Description

Robotic gripper for handheld laser welding

The SWS-LWS-C-1500 robotic gripper offers a plug-and-play solution for automatic welding processes with handheld laser welding systems.

The system offers high stability and is easy to set-up between manual welding and automatic welding, compatible with every Robot or Cobot. All safety functions given by the handheld welding system remain the same.

The SWS-LWS-C-1500 robot gripper enables perfect welding results with complex welding geometries and increases efficiency when welding high quantities.



Specifications:

  • Weight: 2,8 kg
  • Material: Aluminum and POM
  • Interface: 8-pin M12 connector, optional Ethernet
  • Connection voltage control box: 230V, 50Hz, 5VA
  • Mode-Button to enable free-motion
  • Teach-Button to teach positions
  • Communication between robot and welding system
  • Compatible with wire feeder
  • Compatible with every Robot or Cobot
  • Available for handheld laser welding systems from IPG Photonics
