Reference number: ILE-Jula+

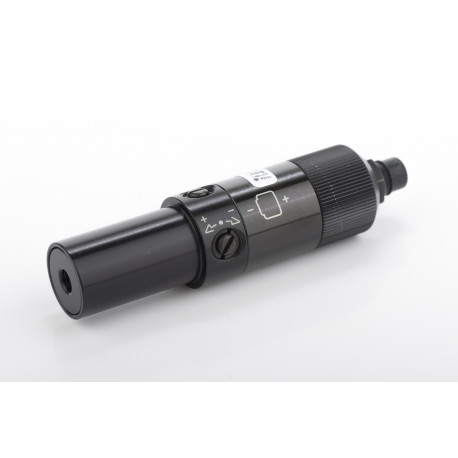

Battery-operated laser adjustable in the X- and Y- axes with an accuracy of 0.24 mrad.
Need more info?
Contact our expert.
Our Team
Need more info?
Contact our expert.
Laser & Light Sources Team
Phone: +49 8153 405-11
Description
The laser fitted can be selected from either a visible red laser or an IR laser. The laser has an integrated X / Y – axis adjustment with which the beam can be set within a maximal deviation of 0.24 mrad. The power is supplied from the inserted battery. The laser is activated by a push button switch for constant on mode or an optional remote switch (Trigger) whereas by turning the battery cap there is a choice between the momentary on trigger function and continuous operation mode. To mount the laser the outer diameters 22 mm and 18 mm are available.
| TECHNICAL DATA | ||||
| Wavelength in nm | Optical Output in mW | Beam shape | Laser class 1) | Divergence in mrad2) |
| 635 | < 1 | Dot | 2 | < 0.5 |
| 635 | ~ 3.5 | Dot | 3R | < 0.5 |
| 850 | < 0.7 | Dot | 1 | < 0.5 |
1) EN/ISO 60825-1 2) E@FWHM
