Reference number: SPK-Antares

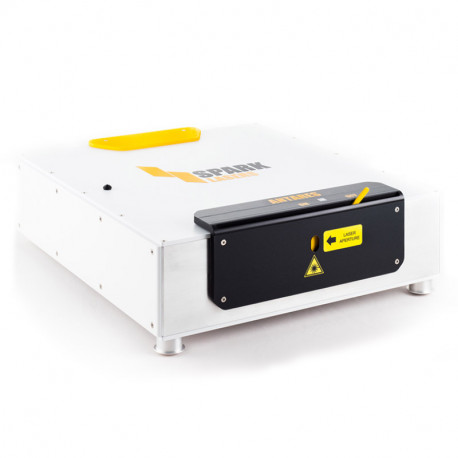

The ANTARES series picosecond lasers deliver high average power with picosecond pulses and high repetition rates in a compact and rugged format.
Need more info?
Contact our expert.
Laser & Light Sources Team
Phone: +49 8153 405-11
Description
The ANTARES series produces high average power with short (<10 ps) pulses at high repetition rates (40 MHz or 80 MHz) in a compact and robust format. Offering one of the world’s lowest cost of ownership, high precision and easiness of integration, ANTARES is ideally suited for industrial and scientific applications.
Specifications:
|
Model |
ANTARES Series |
|||
|
Average power |
1 W |
5 W |
10 W |
20 W |
|
Wavelength |
1030 nm or 1064 nm |
|||
|
Pulse duration |
<10 ps |
|||
|
Repetition rate |
80 MHz |
20 or 40 MHz optional |
||
|
M² |
<1.2 |
|||
|
Beam waist diameter |
1 mm |
|||
|
Beam pointing |
<25 µrad/°C |
|||
|
Ellipticity |
>0.9 |
|||
|
Warm-up time |
<5 min |
|||
|
Power stability |
<1% RMS |
|||
|
RMS noise |
<1% |
|||
|
Polarization |
Linear, >100:1 |
|||
External Interfaces |
High speed external synchronisation (SYNC OUT) |
|||
Software interfaces |
Intuitive GUI, serial communication protocol |
|||
Laser head dimensions & weight |
397 x 339 x 131 mm – 13 kg |
|||
|
Laser controller dimensions & weight |
19”/3U rack – 7,5 kg |
|||
|
Standard cable lengt |
3 m |
|||
Power consumption |
100 to 240VAC <400 W |
|||
|
Cooling |
Air cooled |
|||
|
OPTIONS |
GDD: Group-Dispersion-Pre-Compensation (-90.000 fs²). |
|||
|
SHG (515 nm, 532 nm) & THG (343 nm, 355 nm) |
||||
|
F-SYNC: Fine-tuning PRF-Synchronisation +/- 1 MHz around a fixed central frequency. Can synchronize with any 3rd party master device. |
||||
Laser 2000 GmbH is the exclusive distributor of Spark Lasers in Germany, Austria, Nordics and Iberia.
