Fiber Laser

search
  • jdp-kw-fiber-laser.jpg
  • jdp-kw-fiber-laser.jpg

Reference number: JDP-kW-Fiber-Laser

Lumentum CORELIGHT fiber laser and engines offer outstanding performance for demanding macromaterial processing applications.

alt

Need more info?
Contact our expert.

Laser & Light Sources Team
Phone: +49 8153 405-11

Description

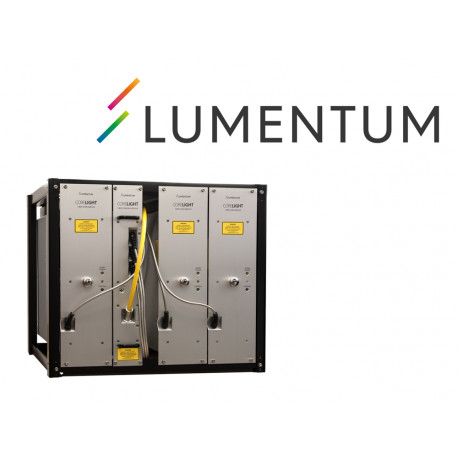

Lumentum kw Fiber Laser

CORELIGHT Series 2.1 kW, 4.2 kW and 6.3 kW fiber laser engines for laser cutting, based on highly advanced, compact 2.1 kW ytterbium fiber laser modules, offer straightforward integration into new and existing manufacturing tools and use a customer’s existing power and control system for cost efficiency. Engine control and monitoring are accomplished through analog, RS-232, and Ethernet communication ports. Multiple, user-accessible, real-time system logs assure detailed operational history is available for review at any time.

Structure of the kW Fiber Laser

Each CORELIGHT Series 2.1 kW module incorporates JDSU-patented ST Series* high-brightness and ultra-compact diode pump modules resulting in an environmentally friendly design taking up to 50 % less space and achieving industry-leading electrical-to-optical efficiency.

User Options of the kW Fiber Laser

CORELIGHT Series engines enable exceptionally high-speed cutting, welding, material deposition, and many other OEM macromaterial processing applications. Ideal for processing steel, aluminum, copper, brass, and many other metals, CORELIGHT Series engines offer installation and operational flexibility to meet the most demanding requirements.

Key Features of Fiber Laser Engines

  • Compact and powerful design — industry leading 2.1 kW optical output per module
  • Strong back-reflection immunity — fast processing of reflective materials
  • Flexible modular approach — enables easy integration into new and existing tools
  • Turnkey Fiber Laser System, 1080 nm, 6 kW cw

The kW Fiber Laser offers high-power and high-brightness solutions


JDSU CORELIGHT AJ-Series 2 kW, 4 kW, and 6 kW turnkey fiber laser systems offer a complete high-power and high brightness solution for the most demanding macromaterial processing applications like laser cutting and laser welding. Built upon the highly efficient, field proven Lumentum CORELIGHT Series ytterbium fiber laser modules, CORELIGHT AJ-Series products seamlessly integrate into new and existing machine tools. Control and monitoring are accomplished through industry-standard interfacing. Multiple, user-accessible, real-time system logs ensure detailed operational history is available for review at any time.

The kW Fiber Laser enables highspeed cutting

CORELIGHT AJ-Series products enable exceptionally highspeed cutting, welding, material deposition, and many other OEM macromaterial processing applications. Ideal for processing steel, aluminum, copper, brass, and many other metals, CORELIGHT AJ-Series products offer installation and operational flexibility to meet the most demanding requirements.

Using the kW Fiber Laser

High-power fiber laser systems are used to cut parts from sheet metal for the manufacturing of automobiles, aircraft and commercial and consumer appliances. They are increasingly used for welding, material deposition (laser cladding) and largescale surface treatment applications significantly more efficiently than traditional non-laser processes.

Key Features of Fiber Laser System

  • High brightness optical output
  • Power options: 2 kW, 4 kW and 6 kW, cw
  • Compact design
  • Full-featured and industry-standard interfacing
  • Wavelength: 1080 nm

Applications of the kW Fiber Laser

  • Macro-material processing including:
  • Metal cutting
  • Welding
  • Material deposition

Regulatory Compliance

  • CE
  • JIG 101 Level A
  • RoHS
