  • Laser welding helmet MAXIMUS

Reference number: PRS-Weld-Helmet

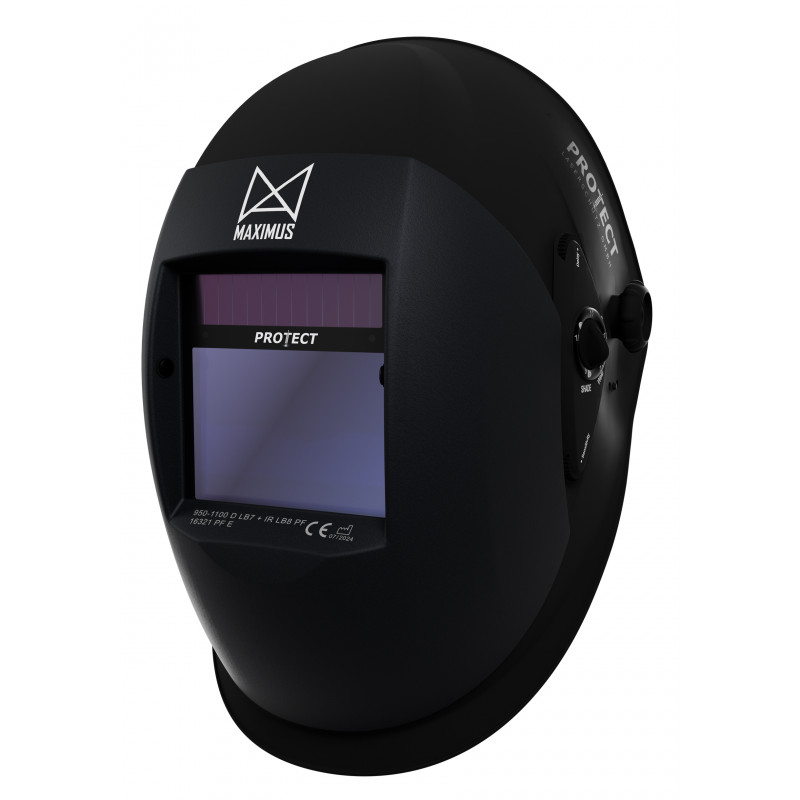

Laser safety helmet for hand-held lasers and all welding applications with permanent laser protection and switchable automatic glare protection (ADF).

alt

Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11

Description

Laser welding helmet for hand-held lasers and all welding applications with permanent laser protection and switchable automatic glare protection (ADF).

  • Certified according to EN 207 (950-1100 D LB7 + IR LB8 (OD8+))*
  • Certified according to ISO 16321 (16321 PF W4/6-8/9-13 V1 E 9)
  • High speed impact resistance Impact Level E
  • Color: Black/Anthracite
  • ADF - darkening range 4/6-8 (9-13)
  • Large viewing area 96 x 68.5 mm
  • Fast ADF switching times of 150µs and long service life
  • Adjustable and automatic dimming
  • Greater area coverage and better heat dissipation. Melting point at 600°C (higher compared to standard welding helmets!)
  • Flexible helmet shell and adjustable head mount
  • Compatible with separately available fresh air ventilation system
  • Weight appr. 775 g

*Please note that the laser welding helmet only protects against stray light from the laser when using a hand-held laser welding device as intended. It is necessary for the laser protection officer in your company to confirm as part of a risk assessment that the maximum permissible radiation levels of the  laser welding helmet are not being reached or exceeded.
