Laser safety goggle for laser welding

Laser Safety Goggle Weld-View-7
search
  • Optical Density Weld-View-7
  • Laser Safety Goggle Weld-View-7

Reference number: NIR-Weld-View-7

Laser protection glasses for laser welding according to DIN EN 207.

alt

Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11

Description

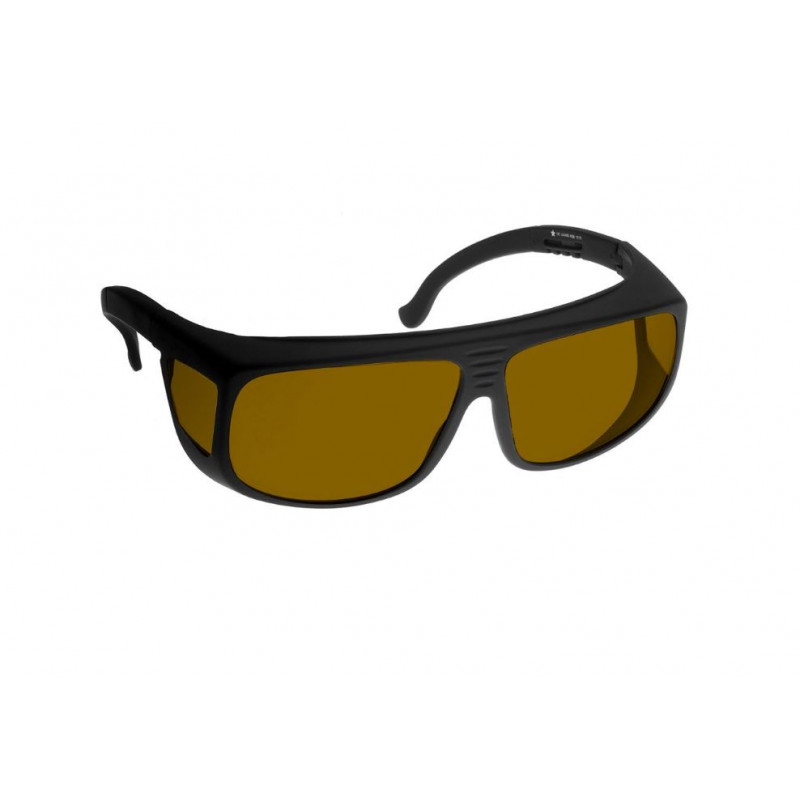

Laser safety goggle for laser welding

NIR-Weld-View-7

Laser safety goggle according to DIN EN 207
Filter material: Polycarbonate
Filter color: Amber
Daylight transmission: 13 %


Optical density:
See filter curve in the picture gallery

Protection values for typical laser welding wavelengths*:
755-1100 nm DLB7 + ILB9 + RLB8 + MLB8Y

Protection values complete*:
315-532 nm DLB6 + IRLB8 + MLB7Y
533-535 nm DIRM LB5
730-744 nm DIRM LB5
745-750 nm DIRM LB6
751-754 nm DIRM LB7
755-1100 nm DLB7 + ILB9 + RLB8 + MLB8Y

*Please note that the laser safety goggle only protects against stray light from the laser when using a hand-held laser welding device as intended. It is necessary for the laser protection officer in your company to confirm as part of a risk assessment that the maximum permissible radiation levels of the laser safety goggle are not being reached or exceeded.

Frame:

  • Top and sideshield protection
  • Side window for a wide field of view
  • Soft temples
  • Adjustable temples
  • Can be worn over prescription glasses
