Laser Safety Goggle, 2750-3300 nm & 9000-11000 nm

  • laserschutzbrille_562_laser2000(6).jpg
  • laserschutzbrille_559g_laser2000(11).jpg
  • laserschutzbrille_561_laser2000(12).jpg
  • laserschutzbrille_562_laser2000(6).jpg

Reference number: UNV-P1045xxx

Laser safety goggles with polycarbonate filter and a daylight transmittance of 92 %.


Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11


Laser goggles (2750-3300 nm & 9000-11000 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-P1045-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Polycarbonate
Filter color: Clear*
Daylight transmission: 92 %
Colour recogination according EN 166:2001 - ISO12313-1:2013
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
2750-2950 nm DI LB4
2950-2985 nm DI LB3
2985-3195 nm DI LB2
3195-3300 nm DI LB3
9000-11000 nm DI LB3

Frame -561:

  • Smart design
  • Soft hypoallergenic nose pad
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face

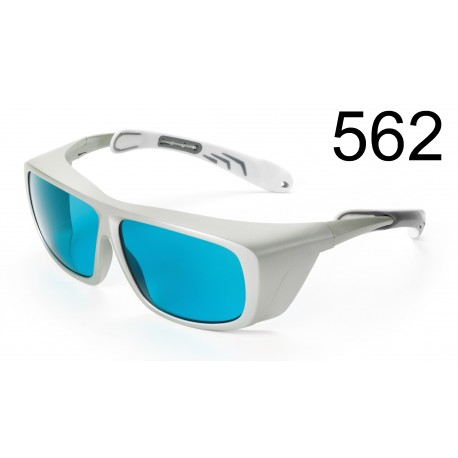

Frame -562:

  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face
  • Universal overspec on every prescription glasses

Frame -559G:

  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses
