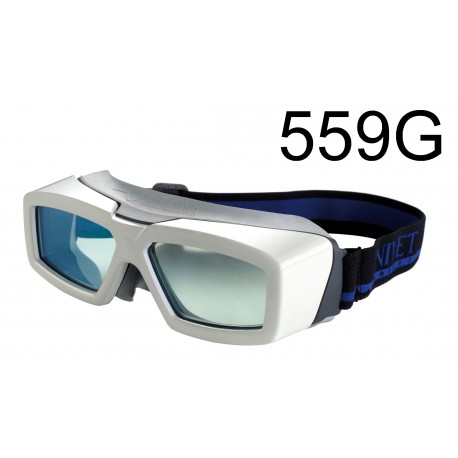

Laser Safety Goggle 780-3300 & 9000-11000 nm, Glass Filter

search
  • laserschutzbrille_559g_laser2000(1).jpg
  • 2012.jpg

Reference number: UNV-G2014-559G

Laser safety goggles according to DIN EN 207 with glass filter and a daylight transmission of 57 %.

alt

Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11

Description

Laser goggles (780-3300 & 9000-11000 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-G2012-559G, Laser Safety Goggle according to DIN EN 207

Application example: CO2 Lasers, 9000-11500 nm

Daylight transmission: 57%
Filter color: Aqua
Glass filter
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
190-270 nm D LB9 IR LB5
780-1400 nm DIR LB3
810-1400 nm DIR LB4
840-1400 nm DIR LB5 + M LB5Y
860-1400 nm DIR LB6 + M LB6Y
880-1400 nm DIR LB7 + M LB7Y
900-1400 nm D LB7 + IR LB8 + M LB8Y
1400-3300 nm DI LB5
9000-11000 nm DI LB5

Frame -559G:

  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses
