Laser Alignment Goggle RGB

  • laserschutzbrille_561_laser2000(3).jpg
  • laserschutzbrille_561_laser2000(3).jpg

Reference number: UNV-P1043-5X7

Laser alignment glasses according to DIN EN 208 with polycarbonate filter and a daylight transmission of 32 %.


Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11


Laser safety goggles (RGB)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-P1043-5X7, Laser Alignment Goggle according to DIN EN 208

Filter material: Polycarbonate
Filter color: Grey*
Daylight transmission: 32 %

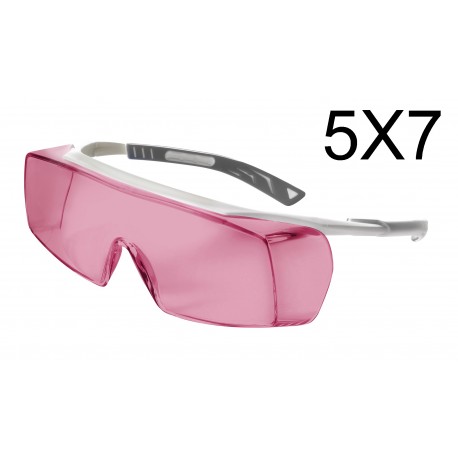

(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
0,01 W 2x10^-6 J 440-455 RB1
0,01 W 2x10^-6 J 521-540 RB1
0,01 W 2x10^-6 J 640-695 RB1

Frame -5X7:

  •     Comfortable over-glasses for spectacle wearers
  •     Extremely light frame (42 g)
  •     Full-length absorbent polycarbonate filter for good all-round visibility
  •     Equipped with patented Softpad technology
  •     Adjustable hangers
