Laser Safety Goggle, 190-540 nm polycarbonate

search
  • laserschutzbrille_5x7_laser2000(1).jpg
  • laserschutzbrille_546_laser2000.jpg
  • laserschutzbrille_561_laser2000.jpg
  • laserschutzbrille_562_laser2000.jpg
  • laserschutzbrille_559g_laser2000(3).jpg
  • 1009.jpg

Reference number: UNV-P1009-xxx

Laser safety goggles according to DIN EN 207 with polycarbonate filter and a daylight transmission of 38 %.

alt

Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11

Description

Laser goggles (190-540 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-P1009-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Polycarbonate
Filter color: Orange*
Daylight transmission: 38 %
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
Frames -561, -562, -559G:
190-315 D LB7 + IR LB4
>315-532 D LB6 + IR LB7 + M LB7Y
>315-535 DIR LB6 + M LB6Y

Frames -546, -5X7:
180-315 D LB7 + IR LB4
>315-534 DIRM LB6
>315-536 DIRM LB5
>315-538 DIRM LB4
>315-541 DIRM LB3

Frame -546:

  • Wraparound shape for outstanding protection
  • Extremely lightweight
  • Anti-slip soft rubber nose pad
  • Perfect-fit temple tips reduce the lateral pressure

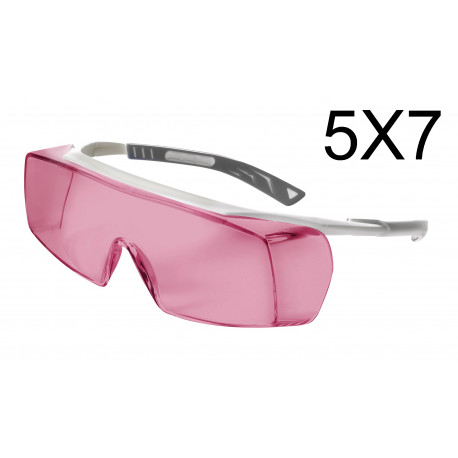

Frame -5X7:

  • Developed to be worn over every prescription glasses without losing in comfort
  • Ultra-light frame (42 g)
  • Wide vision single-lens absorbing filters made of polycarbonate
  • Equipped with patented Softpad technology
  • Adjustable temples


Frame -561:

  • Smart design
  • Soft hypoallergenic nose pad
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face


Frame -562:

  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face
  • Universal overspec on every prescription glasses



Frame -559G:

  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses
