Laser Eyewear, 1025-3000/5200-11000 nm

  • laserschutzbrille_38_laser2000(13).jpg
  • laserschutzbrille_34_laser2000(20).jpg
  • laserschutzbrille_35_laser2000(20).jpg
  • laserschutzbrille_38_laser2000(13).jpg

Reference number: NIR-HYG-xxx

Laser protection glasses according to DIN EN 207 with polycarbonate filter and a daylight transmission of 23 %.


Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11


Laser adjustment goggles (1025-3000/5200-11000 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the applicable standards according to international and European optical and laser standards (DIN EN 207 / EN208).

NIR-HYG-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Polycarbonate
Filter color: Grey*
Daylight transmission: 23 %
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
1025-1075 nm DIRM LB5
1035-1070 nm DIRM LB6
1045-1065 nm DD LB6 + IR LB7 + M LB7Y
1450-1650 nm DIR LB2
1651-1775 nm DI LB3 + R LB3Y
1775-3000 nm DI LB4 + R LB3Y
5200-11000 nm DI LB4 + R LB3Y

Frame -34:

  • Sleek stylish fit
  • Light and comfortable
  • Soft temples
  • Removable lens inserts

Frame -35:

  • Modern style
  • Light and comfortable
  • Adjustable temples

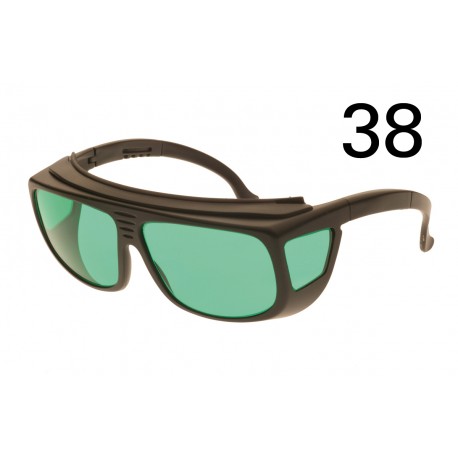

Frame -38:

  • Top and sideshield protection
  • Side window for a wide field of view
  • Soft temples
  • Adjustable temples
  • Can be worn over prescription glasses
