Reference number: NIR-DBY-xxx
Laser adjustment goggles according to DIN EN 208 with polycarbonate filter and a daylight transmission of 35 %.
Need more info?
Contact our expert.
Laser Safety Team
Phone: +49 8153 405-11
Description
Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the applicable standards according to international and European optical and laser standards (DIN EN 207 / EN208).
NIR-DBY-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207
Filter material: Polycarbonate
Filter color: Amber*
Daylight transmission: 35 %

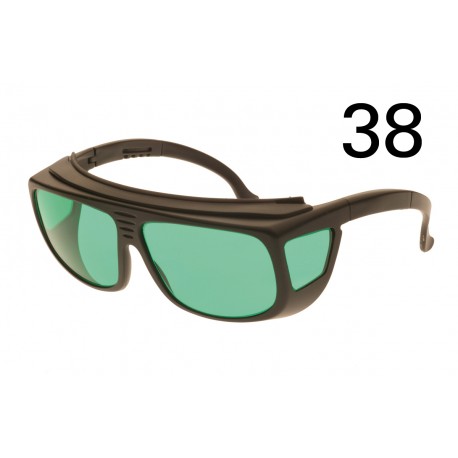

(*the picture shows one filter color as an example only)
Optical density:
See filter curve in the picture gallery
Protection values:
180-315 D LB7 + R LB4
>315-534 D LB5 + IRM LB6
850-925 DIRM LB5
>925-980 D LB5 + IRM LB6
>980-1064 D LB6 + IRM LB7
>1064-1085 DIRM LB5
Frame -34:
Frame -35:
Frame -38:
Downloads
Laser adjustment goggles according to DIN EN 208 with polycarbonate filter and a daylight transmission of 35 %.
