Reference number: UNV-G2006-xxx

Laser safety goggles according to DIN EN 207 with glass filter and a daylight transmission of 7%.

alt

Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11

Description

Laser goggles (193-535 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-G2006-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Glass
Filter color: Red*
Daylight transmission: 7%
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
190-315 D LB9 + IR LB4
>315-580 D LB6 + I LB8 + R LB7 + M LB7Y
>315-565 D LB6 + IR LB7

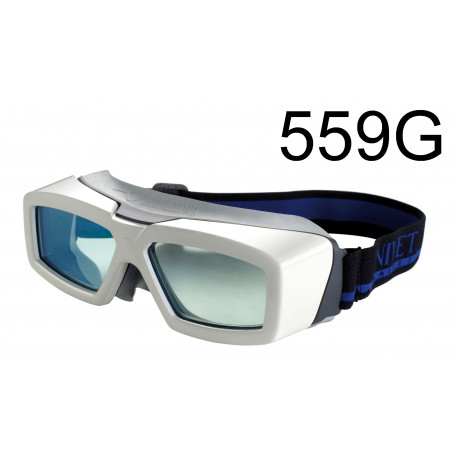

Frame -559G:

  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses


Frame -616:

  • Laser protection for patients
  • Adjustable nose pad
  • Adjustable cord
  • Can be sterilized by an autoclave
  • Ideal for medical practices and clinics
