Reference number: UNV-P1032-xxx

Laser safety goggles according to DIN EN 207 with glass filter and a daylight transmission of 20 %.

alt

Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11

Description

Laser goggles (457-542 nm up to 10 W)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-P1032-xxx (xxx=frame), Laser Adjustment Goggle according to DIN EN 208

Filter material: Polycarbonate
Filter color: Orange*
Daylight transmission: 20 %
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
1 W 2x10^-4 J 457-468 RB3
10 W 2x10^-3 J >468-542 RB4

Frame -561:

  • Smart design
  • Soft hypoallergenic nose pad
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face

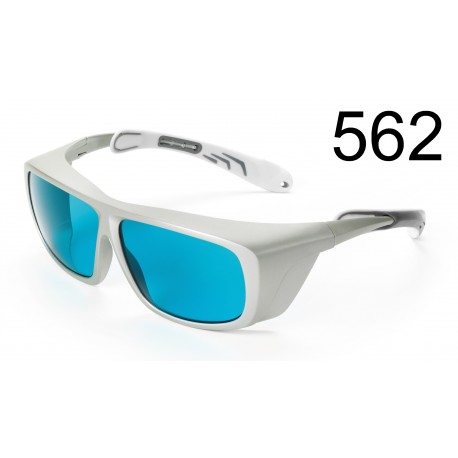

Frame -562:

  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face
  • Universal overspec on every prescription glasses


Frame -559G:

  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses
