Laser Safety Goggle, 625-730 + 755-920 nm polycarbonate

search
  • laserschutzbrille_531_laser2000(1).jpg
  • laserschutzbrille_561_laser2000(6).jpg
  • laserschutzbrille_562_laser2000(4).jpg
  • laserschutzbrille_559g_laser2000.jpg
  • 1015.jpg

Reference number: UNV-P1015-xxx

Laser safety goggles according to DIN EN 207 with polycarbonate filter and a daylight transmission of 20 %.

alt

Need more info?
Contact our expert.

Laser Safety Team

Description

Laser goggles (625-730 + 755-920 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-P1015-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Polycarbonate
Filter color: Green*
Daylight transmission: 20 %
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
190-315 D LB7 + IR LB3
>315-380 DIR LB5
625-730 DIR LB3
685-722 DIR LB4
689-719 DIR LB5
692-715 D LB5 + IR LB6
755-920 DIR LB3
775-900 DIR LB4
785-870 DIR LB5
795-825 D LB5 + IR LB6

Frame -561:

  • Smart design
  • Soft hypoallergenic nose pad
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face

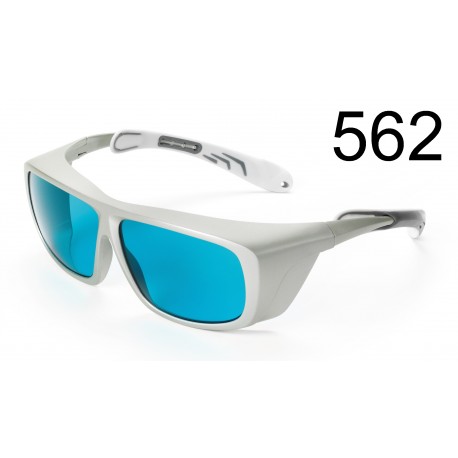

Frame -562:

  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face
  • Universal overspec on every prescription glasses



Frame -559G:

  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses
