Laser Safety Goggle, 680-1115 nm

  • laserschutzbrille_561_laser2000(11).jpg
  • laserschutzbrille_562_laser2000(8).jpg
  • laserschutzbrille_559g_laser2000(10).jpg
  • 1029.jpg

Reference number: UNV-P1029-xxx

Laserschutzbrillen nach DIN EN 207 mit Polycarbonat-Filter und einer Tageslichttransmission von 10 %.


Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11


Laser goggles (680-1115 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-P1029-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Polycarbonate
Filter color: Orange*
Daylight transmission: 10 %
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
190-315 D LB7 + IR LB4
>315-535 D LB5 + IR LB6
680-1115 DIR LB3
690-1100 DIR LB4
715-1095 DIR LB5
732-850 DIR LB6
880-1085 D LB6 + IR LB8 + M LB8Y
9000-11000 DI LB4

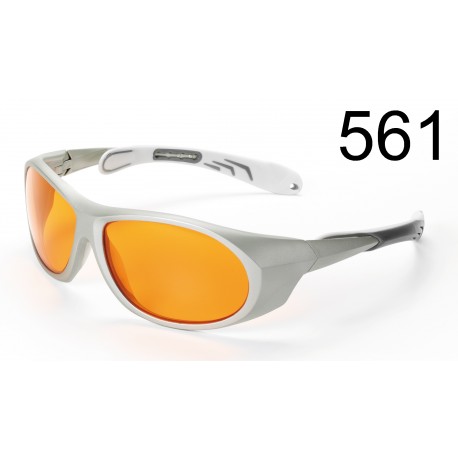

Frame -561:

  • Smart design
  • Soft hypoallergenic nose pad
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face

Frame -562:

  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face
  • Universal overspec on every prescription glasses

Frame -559G:

  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses
