Laser Safety Goggle, 315-532/800-1105nm

  • laserschutzbrille_562_laser2000(3).jpg
  • laserschutzbrille_561_laser2000(7).jpg
  • laserschutzbrille_562_laser2000(3).jpg
  • laserschutzbrille_559g_laser2000(1).jpg
  • 1016.jpg

Reference number: UNV-P1016-xxx

Laser safety goggles according to DIN EN 207 with polycarbonate filter and a daylight transmission of 16 %.


Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11


Laser goggles (315-532/800-1105 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-P1016-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Polycarbonate
Filter color: Orange*
Daylight transmission: 16 %
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:

Frame -5X7:
180-315 D LB7 + IR LB4 + M LB4Y
>315-535 D LB6 + IR LB8 +M LB7Y
950-1070 D LB6 IR LB8 + M LB7Y

Frame -546
180-315 D LB7 + IR LB4
>315-534 DIRM LB6
>315-536 DIRM LB5
>315-538 DIRM LB4
>315-541 DIRM LB3
800-1100 DIR LB3
850-1085 DIR LB4
910-1075 DIR LB5
960-1065 DIRM LB6

Frames -561, -562, -559G:
190-315 D LB7 + IR LB4
>315-532 D LB6 + IR LB8 + M LB8Y
800-1105 DIR LB3
850-1090 DIR LB4
905-1080 DIR LB5
945-1070 DIR LB6
970-1068 D LB6 + IR LB7 + M LB7Y
1000-1065 D LB6 + IR LB8 + M LB8Y
9000-11000 DI LB4

Frame -5X7:

  • Developed to be worn over every prescription glasses without losing in comfort
  • Ultra-light frame (42 g)
  • Wide vision single-lens absorbing filters made of polycarbonate
  • Equipped with patented Softpad technology
  • Adjustable temples

Gestell -546:

  • Runde Filter-Passform für hervorragenden Schutz
  • Extrem leichtes Gestell
  • Weiche Anti-Rut0,01 W 2x10^-6 J 660-675 RB1
    0,1 W 2x10^-5 J 675-690 RB2sch-Nasenauflage
  • Passgerechte Bügelenden reduzieren den seitlichen Druck

Frame -561:

  • Smart design
  • Soft hypoallergenic nose pad
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face

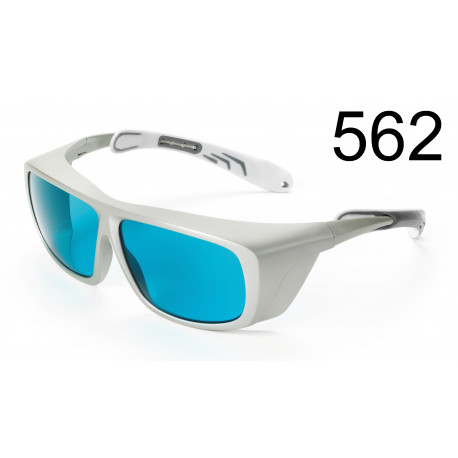

Frame -562:

  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face
  • Universal overspec on every prescription glasses

Frame -559G:

  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses
