Laser Safety Goggle Excimer Lasers, 190-535 nm, Glass Filter

search
  • laserschutzbrille_559g_laser2000.jpg
  • laserschutzbrille_616_laser2000.jpg
  • 2002.jpg

Reference number: UNV-G2002-xxx

Laser safety goggles according to DIN EN 207 with glass filter and a daylight transmission of 42 %.

Need more info?
Contact our expert.

Manuel
Neubauer

In-House Sales

+49 8153 405-74

alt

Description

Laser goggles (193-535 nm for excimer lasers)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-G2002-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Application example: Excimer Lasers, 193-351 nm

Filter material: Glass
Filter color: Orange*
Daylight transmission: 42 %
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
Frame -531:
190-315 D LB9 + IR LB4
>315-535 D LB5 + IR LB7

Frames -559G, -616:
190-315 D LB9 + IR LB4
>315-535 D LB6 + IR LB7

Frame -531:
  • Side protection
  • Adjustable hypoallergenic silicon nose pad
  • Adjustable temples

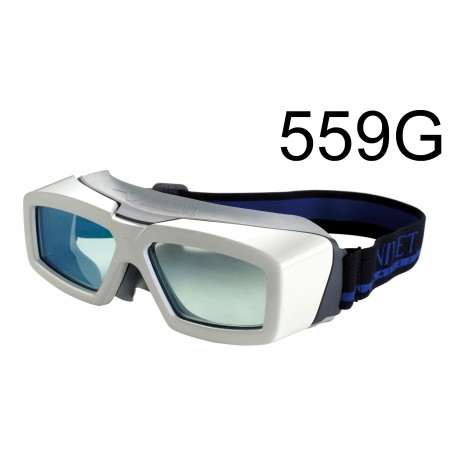

Frame -559G:
  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses

Frame -616:
  • Laser protection for patients
  • Adjustable nose pad
  • Adjustable cord
  • Can be sterilized by an autoclave
  • Ideal for medical practices and clinics
