Reference number: NIR-YG2-xxx

Laser safety goggles according to EN 207 with a polycarbonate filter and a daylight transmittance of 25 %.

alt

Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11

Description

Laser adjustment goggles (720-1075 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the applicable standards according to international and European optical and laser standards (DIN EN 207 / EN208).

NIR-YG2-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Polycarbonate
Filter color: Amber*
Daylight transmission: 25 %
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
180-315 D LB6 + R LB4
>315-400 DR LB4
720-725 DM LB5
720-750 IR LB5
>725-1075 DM LB6
>750-1064 IRM LB7
>1064-1075 IR LB5


Frame -34:

  • Sleek stylish fit
  • Light and comfortable
  • Soft temples
  • Removable lens inserts

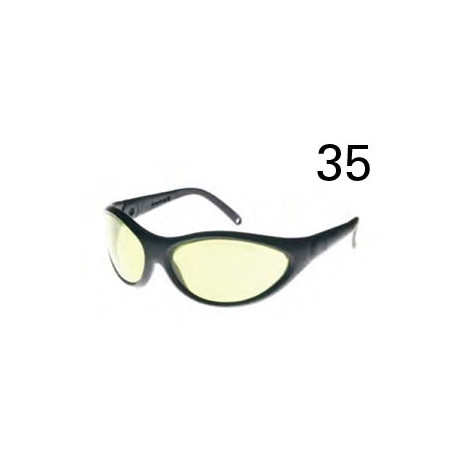

Frame -35:

  • Modern style
  • Light and comfortable
  • Adjustable temples


Frame -38:

  • Top and sideshield protection
  • Side window for a wide field of view
  • Soft temples
  • Adjustable temples
  • Can be worn over prescription glasses
