Reference number: UNV-P1001-xxx

Laser safety goggles according to DIN EN 207 with polycarbonate filter and a daylight transmission of 90 %.

Need more info?
Contact our expert.

Manuel
Neubauer

In-House Sales

+49 8153 405-74

alt

Description

Laser goggles (10600 nm - DI LB4)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-P1001-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Polycarbonate
Filter color: Clear*
Daylight transmission: 90 %
Very good color vision according to EN 166: 2001 - ISO12313-1: 2013
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:

Frames -561, -562, -559G:
190-315 D LB7 + IR LB3
10600 DI LB4

Frame -5X7:
9000-11000 DI LB4



Frame -5X7:
  • Developed to be worn over every prescription glasses without losing in comfort
  • Ultra-light frame (42 g)
  • Wide vision single-lens absorbing filters made of polycarbonate
  • Equipped with patented Softpad technology
  • Adjustable temples

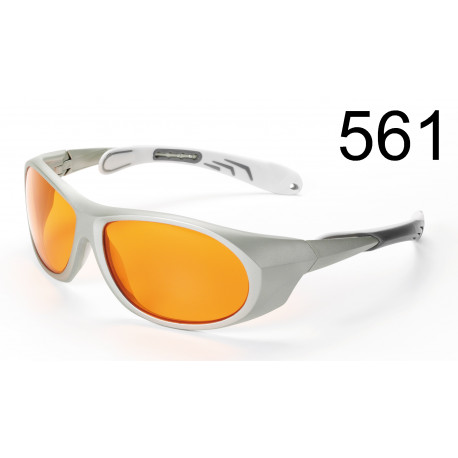

Frame -561:
  • Smart design
  • Soft hypoallergenic nose pad
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face

Frame -562:
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face
  • Universal overspec on every prescription glasses


Frame -559G:
  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses
