Laser adjustment goggle, 589-699 nm up to 100 mW

  • laserschutzbrille_562_laser2000(7).jpg
  • laserschutzbrille_561_laser2000(13).jpg
  • laserschutzbrille_559g_laser2000(12).jpg
  • 1031.jpg

Reference number: UNV-P1031-xxx

Laser adjustment goggles according to DIN EN 208 with polycarbonate filter and a daylight transmission of 15 %.


Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11


Laser goggles (595-700 nm up to 100 mW)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-P1031-xxx (xxx=frame), Laser Adjustment Goggle according to DIN EN 208

Filter material: Polycarbonate
Filter color: Blue*
Daylight transmission: 15 %
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
0,01 W 2x10^-6 J 400-430 RB1
0,01 W 2x10^-6 J 560-595 RB1
0,1 W 2x10^-5 J >595-700 RB2

Frame -561:

  • Smart design
  • Soft hypoallergenic nose pad
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face

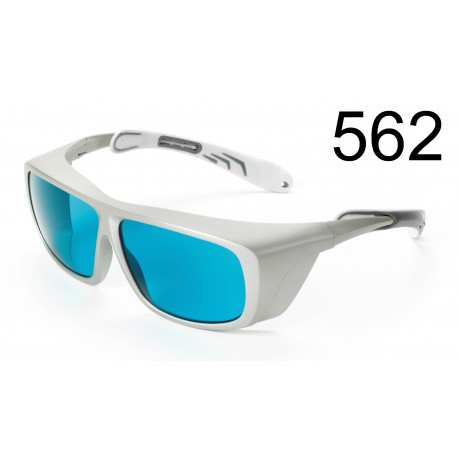

Frame -562:

  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face
  • Universal overspec on every prescription glasses

Frame -559G:

  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses
