Reference number: NIR-ZSA-xxx

Laser protection glasses according to DIN EN 208 with polycarbonate filter and a daylight transmission of 10 %.

alt

Need more info?
Contact our expert.

Laser Safety Team
Phone: +49 8153 405-11

Description

Laser adjustment goggles (532/561/659 nm, up to 1 W)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the applicable standards according to international and European optical and laser standards (DIN EN 207 / EN208).
NIR-ZSA-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207, Laser Adjustment Goggle according to DIN EN 208

Filter material: Polycarbonate
Filter color: Violet*
Daylight transmission: 10 %
(*the picture shows one filter color as an example only)

Optical density:
See filter curve in the picture gallery

Protection values:
180-315 D LB7 + IR LB4
>315-390 DIRM LB5
1 W 2x10^-4 J 532 RB3
1 W 2x10^-4 J 561 RB3
1 W 2x10^-4 J 659 RB3

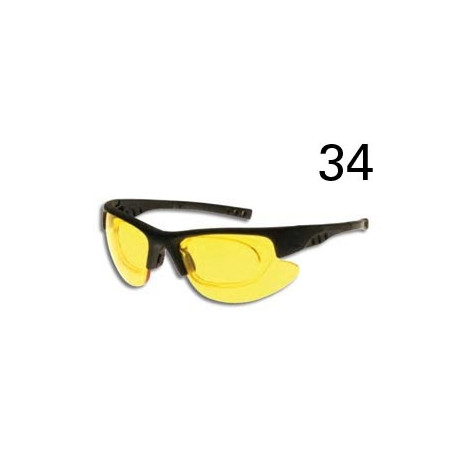

Frame -34:

  • Sleek stylish fit
  • Light and comfortable
  • Soft temples
  • Removable lens inserts


Frame -35:

  • Modern style
  • Light and comfortable
  • Adjustable temples


Frame -38:

  • Top and sideshield protection
  • Side window for a wide field of view
  • Soft temples
  • Adjustable temples
  • Can be worn over prescription glasses
