Reference number: L2S-FL-Laser

The highest power system with thermoelectric temperature stabilization for even better signal-to-noise ratios and DB-connector for monitoring/modulation.

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

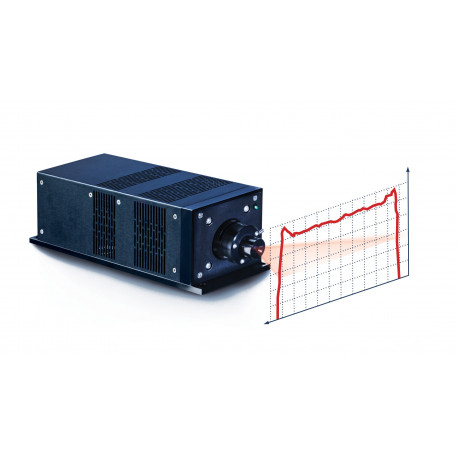

Fireline Laser System - Superior Beam quality at high powers!

This system is developed for demanding industrial machine vision and scientific applications. This thermoelectrically cooled device is able to emit uniform laser lines at high powers.

Characteristics

  • Superior beam shaping
  • Different wavelengths
  • Individual optical options
  • External focussable
  • High Pointing and focus stability
  • Thermoelectrical cooled
  • DB-connector for monitoring/modulation
  • Laser classes 4
  • Protected against: ESD, reverse polarity, over temperature and overvoltage

Applications

  • 3D Machine Vision
  • Industrial Inspection
  • Rail and Road Inspection

Modifications

Example: FL-808-15-RT-D-45-PF500-DP

FL Fireline Laser System
808 Wavelength: typ. 808 nm
15 Max. diode power: 15 W
RT Digital modulation (Reverse TTL): off 0 - 0,5 V | on 0,7 - 5 V
D Focus option: D
45 Fan angle: 45°
PF500 Prefocussed to distance:500 mm
DB Dust Proof



Other available Options:

  • COS4 correction (or other profiles)
