Reference number: DAT-MAGNDX

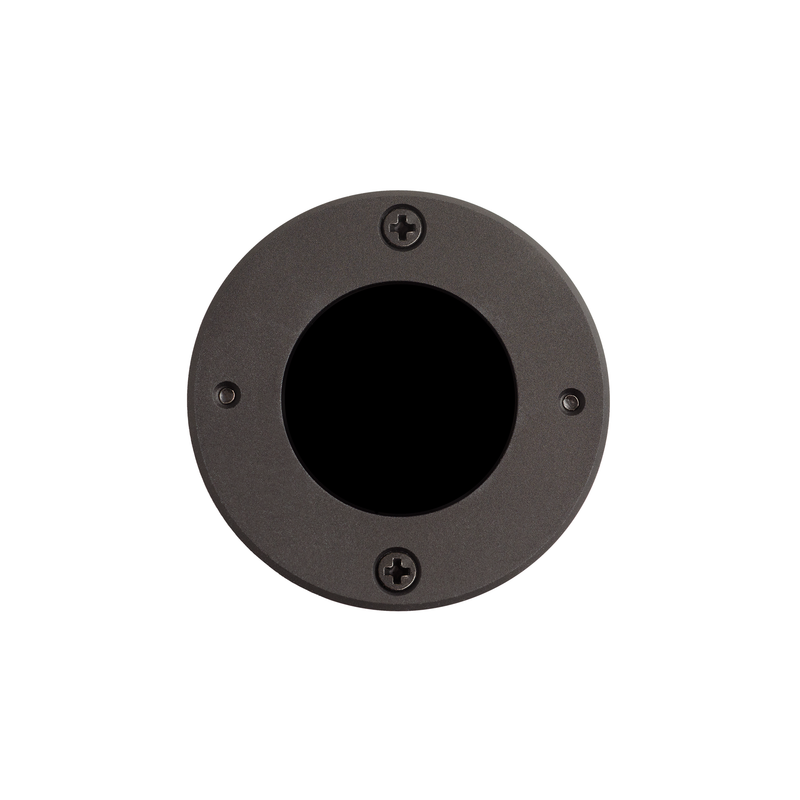

Precisely attenuate your laser beam with DataRay's MagND (magnetic Neutral Density) filters. Designed for seamless integration with WinCamD-LCM and WinCamD-GCM beam profiling cameras, these 1-inch filters feature a unique stackable, magnetic holder, a 2° off-axis mounting to prevent back reflections, and are available individually or in sets for visible and UV wavelengths.

alt

Need more info?
Contact our expert.

Our Team

alt

Need more info?
Contact our expert.

Optical Test & Measurement Team
Phone: +49 8153 405-11

Description

Enhance Your Beam Profiling with DataRay MagND Filters

DataRay's MagND (magnetic Neutral Density) filters offer an advanced solution for precisely attenuating your laser beam, ensuring optimal performance for your beam profiling applications. Designed with convenience and accuracy in mind, these stackable, magnetic 1-inch ND filters are an essential accessory for users of WinCamD-LCM and WinCamD-GCM beam profiling cameras.

Key Features

  • Magnetic, Stackable Design: Easily attach and combine multiple filters with the innovative magnetic holder, allowing for flexible attenuation levels.

  • Optimal Compatibility: Specifically designed for seamless integration with DataRay's WinCamD-LCM and WinCamD-GCM beam profiling cameras.

  • 2° Off-Axis Mounting: Each filter is mounted at a 2° angle to the axis, effectively minimizing unwanted back reflections that can interfere with measurements.

  • Included Alignment Cap: Comes with a protective cap that doubles as an alignment target for convenient setup.

  • Broad Wavelength Coverage: Available for both visible and UV wavelength ranges, catering to a wide array of laser systems.

  • Precision Attenuation: ND value is specified at 675 nm, with detailed transmission curves available for accurate attenuation across different wavelengths.

  • Flexible Purchase Options: Available as individual filters or in convenient sets:

    • 3-piece set: Includes ND 1, ND 2, and ND 3 filters.

    • 6-piece set: Includes ND 0.5, ND 1, ND 2, ND 3, ND 4, and ND 5 filters.

Applications

  • Laser Beam Attenuation: Precisely reduce the intensity of laser beams to protect sensors and optimize measurement range.

  • Beam Profiling: Essential for accurate beam profiling with DataRay WinCamD-LCM and WinCamD-GCM cameras, ensuring the sensor operates within its linear response range.

  • Research and Development: Ideal for laboratories and R&D environments requiring controlled laser power for experiments.

  • Industrial Laser Systems: Suitable for applications in industrial settings where laser power needs to be precisely managed for measurement and quality control.
