Reference number: MIS-SNM-288-VS-SIS

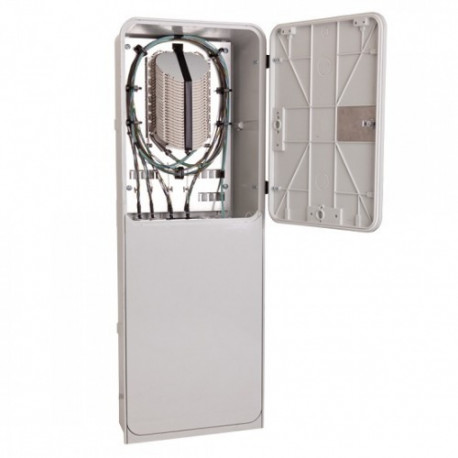

SNM 288 VS SIS Optical Pillar Closure - Optical closure SNM 288 VS SIS is designed for the placement of up to 288 optical splices indoors and outdoors. Distributor could be installed outdoors or indoors in an open space in trench. Plastic corpus of pillar is staff ed by one SNM 288 VS distributor.

alt

Need more info?
Contact our expert.

Network Technology Team
Phone: +49 8153 405-11

Description

  • Maximum capacity is 288 optical splices
  • Plastic corpus
  • Installation – separate pillar
  • Modular hinged system
  • Placement of optical fi ber reserve, length 2 m
  • Usage of SE splice trays for up to 12 fi bers
  • Cable inputs/outputs from bottom
  • Convenient placing of fi bers in each splice tray
  • Oval bushing for undivided cable (so called “OMEGA”)
Bushings 2× PG 13,5, 8× PG 29
Coverage degree IP 54 to EN 60529
Self-extinguishing degree V0 to UL 94
Impact protection degree IK 10 to EN 50102
Colour Light grey RAL 7035
Material – distribution box PREPREG SMC (PVC/ABS)
Material – bushings PA6/PVC
Material – metallic parts Aluminium
Dimensions 1180 × 420 × 216 mm
Weight              9 kg / 18 kg
