Reference number: MIS-ORU-8-SDF-SIS

ORU 8 SDF SIS Concentrator Pillar Distribution Box. ORU 8 SDF SIS is a new generation of street cabinets for PON-type optical network. The cabinet is freestanding with the ruggedized structure against damage. Perfectly accessible and flexible.

alt

Need more info?
Contact our expert.

Network Technology Team
Phone: +49 8153 405-11

Description

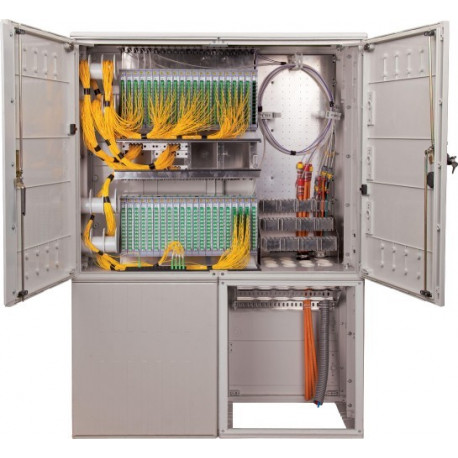

ORU 8 SDF SIS Concentrator Pillar Distribution Box

ORU 8 SDF SIS is a new generation of street cabinets for PON-type optical network. The cabinet is freestanding with the ruggedized structure against damage. Perfectly accessible and flexible. At the same time offers high-quality integrated modular optical management for terminating or connecting of optical cables in micro-ducts or HDPE protecting pipes. The construction of the cabinet allows its using in outdoor environments. The cabinet is installed in an open area in trench.

  • Number of modules 42
  • Capacity of modules 12× SC/E2000/SX or 12× LC/DX
  • Capacity of 504/1008 optical splices
  • Maximum connected capacity subscribers 480 in SC or 960 in LC connectors
  • Maximal PLC splitter capacity 16 splitters (LGX type)
  • Placement of optical fiber reserve, length 5 m
  • Three-point lock
  • Sophisticated holder for microducts or HDPE tubes
