Reference number: RES-Benchtop

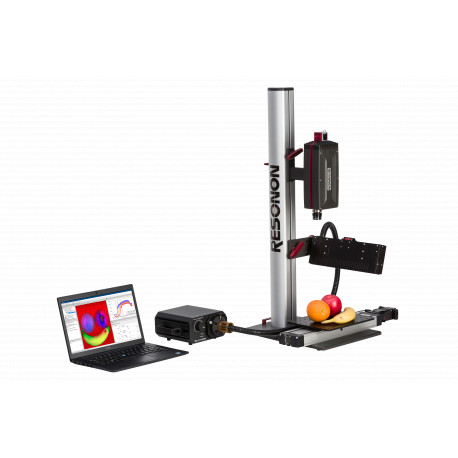

Resonon's hyperspectral benchtop systems are specifically designed for laboratory use and include all components and software for recording and analyzing hyperspectral data cubes.

alt

Need more info?
Contact our expert.

Optical Test & Measurement Team

Description

Hyperspectral imaging systems are fully integrated plug-and-play solutions, with all hardware and software necessary to acquire and analyze hyperspectral data.

Benchtop System

For laboratory use

System Components:

  • Hyperspectral imaging camer
  • Linear translation stage
  • Mounting tower
  • Stabilized lighting assembly
  • Data acquisition computer with software

Hyperspectral Camera Options

Hyperspectral Imaging systems can be fitted with the following hyperspectral imaging cameras:

Pika L Pika XC2 Pika NIR-320 Pika NIR-640 Pika NUV
Spectral Range (nm) 400 – 1000 400 – 1000 900 – 1700 900 – 1700 350 – 800
Spectral Resolution (nm) 2.1 1.3 4.9 2.5 2.3
Spectral Channels 281 447 164 328 196
Spatial Channels 900 1600 320 640 1600
Max Frame Rate (fps) 249 165 520 249 165
Bit Depth 12 12 14 14 12

Benchtop System Stage Options

  • Standard Linear Stage: The linear stage holds the sample and translates across the field of view. Used for small amples that are easy to move.
  • Lighting & Imager Stage: The imager and lighting assembly are mounted to the standard translation stage. Used to scan stationary objects.
  • Backlight Stage: Backlighting with a clear stage platform. Often used to scan biological samples.
