  • Airborne Hyperspectral Imaging Systems

Reference number: RES-Airborne

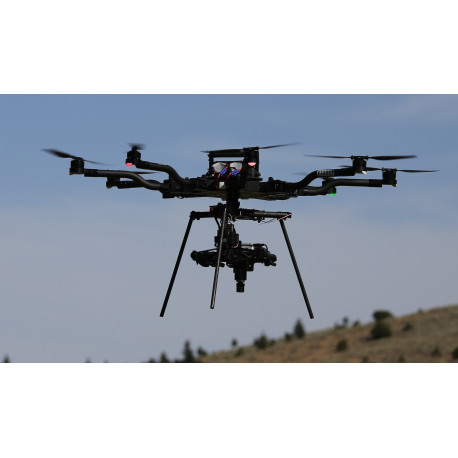

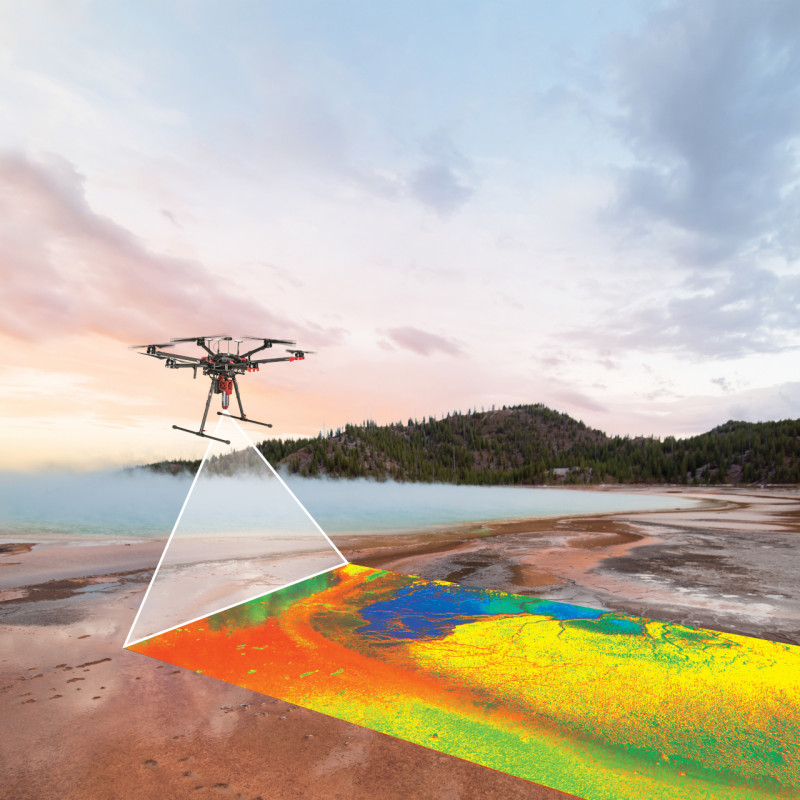

The Resonon airborne system is a turnkey solution, for the analyzation of georegistered hyperspectral data. It includes all necessary hardware and software in one light and stable system which can be mounted on a drone or a manned aircraft.

alt

Need more info?
Contact our expert.

Optical Test & Measurement Team

Description

The hyperspectral airborne systems are fully integrated turnkey solutions, with all hardware and software necessary to acquire and analyze georegistered hyperspectral data. Payload weights begin at 1.6 kg (3.5 lb).

System components:

  • Hyperspectral imaging camera
  • System control computer
  • System control software
  • SSD data storage GPS/IMU
  • Georectification software
  • Multiple calibration options
  • Flexible mounting options
  • Spectronon data analysis software
  • Training services

Hyperspectral Camera Options

The airborne systems can be fitted with the following hyperspectral imaging cameras (see the columns):

Pika L Pika XC2 Pika IR Pika IR+ Pika NUV
Spectral Range (nm) 400 – 1000 400 – 1000 900 – 1700 900-1700 350 – 800
Spectral Resolution (nm) 2.1 1.3 4.9 2.5 2.3
Spectral Channels 281 447 164 328 196
Spatial Channels 900 1600 320 640 1600
Max Frame Rate (fps) 249 165 520 249 165
Bit Depth 12 12 14 14 12
Imager Weight 1.3 lb (0.6 kg) 4.9 lb (2.2 kg) 5.9 lb (2.7 kg) 5.9 lb (2.7 kg) 4.7 lb (2.1 kg)
Min. Complete System Weight 3.5 lb (1.6 kg) 6.8 lb (3.1 kg) 8.7 lb (4.0 kg) 8.7 lb (4.0 kg) 6.6 lb (3.0 kg)

GPS / IMU Options

The airborne systems can be fitted with the following GPS/IMU Options (see the columns):

SBG Ellipse-N SBG Ellipse-D
Accuracy, SBAS 0.6 m 0.6 m
Accuracy, Pitch 0.2° 0.1°
Accuracy, Roll 0.2° 0.1°
Accuracy, Heading 1.0° 0.2°
Weight 0.10 lb (0.05 kg 0.40 lb (0.18 kg)
Dimensions 4.6 x 4.5 x 2.4 cm 8.7 x 6.7 x 3.2 cm

Additional Specifications and Options

The following table lists the available additional specifications:

System Control Computer 1.01 lb / 0.46 kg System component
Downwelling Calibration Sensor (VNIR) 0.41 lb / 0.19 kg For monitoring solar illumination
Calibration Tarps Known reflectance standard
Pika L Gimbal Caddy 0.50 lb / 0.23 kg UAV mounting package for Pika L airborne system.
Compatible with gimbals designed for SLR cameras.
Vibration Isolation Pod 5.4 lb / 2.5 kg Mounting package for manned aircraft.
