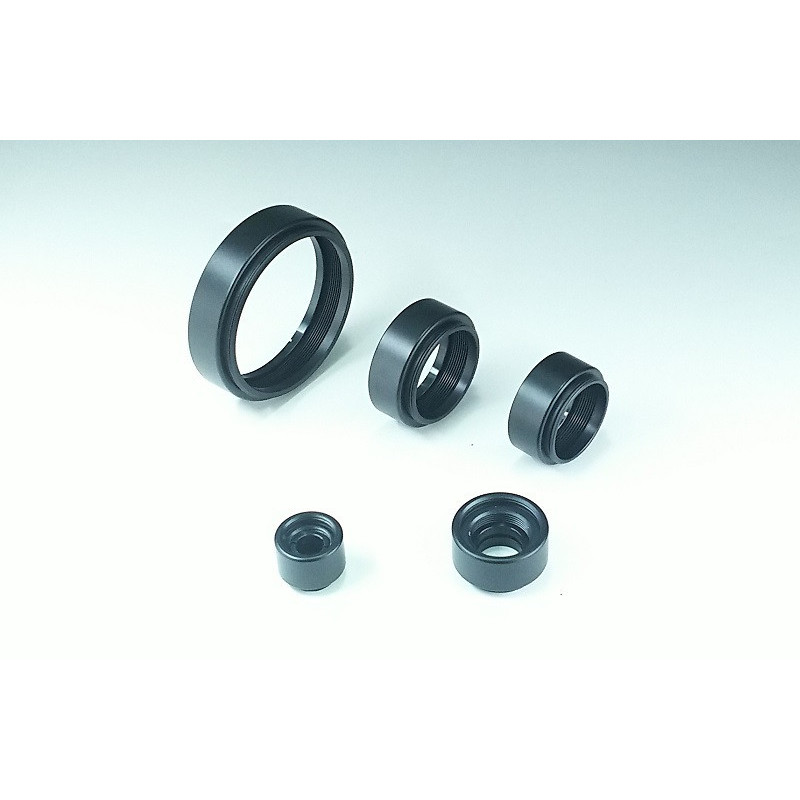

OSE-LHGC: Lens case / Filter case, Ø 10 mm

• Compatible Optics Diameter: Ø 10 mm
• Compatible Optics Thickness: 5 mm
• Clear Aperture: Ø 7 mm
• Weight: 0.006 kg

• Filter case can be mounted with or dismounted from lens holder while the lens is mounted on lens holder.
• Mountable diameter of optics is as same as the diameter of the lens holder’s compatible optics diameter. (Except for OSE-LHGC-10 and OSE-LHGC-15)
• Multiple filter cases can be jointed when the same diameter filter cases are used.
• It allows to use as a filter mount to arrange the combination of the filters.

Attention:

• Filter case may not be mounted on lens holder when the thick lens is fixed on the lens holder.
• The thread depth must be 3 mm or deeper to mount the filter case with lens holder.

• Compatible Optics Diameter: Ø 12.7 mm
• Compatible Optics Thickness: 5 mm
• Clear Aperture: Ø 7 mm
• Weight: 0.006 kg

• Filter case can be mounted with or dismounted from lens holder while the lens is mounted on lens holder.
• Mountable diameter of optics is as same as the diameter of the lens holder’s compatible optics diameter. (Except OSE-LHGC-10 and OSE-LHGC-15)
• Multiple filter cases can be jointed when the same diameter filter cases are used.
• It allows to use as a filter mount to arrange the combinations of the filters

Attention:

• Filter case may not be mounted on lens holder when the thick lens is fixed on the lens holder.
• The thread depth must be 3 mm or deeper to mount the filter case with lens holder

• Compatible Optics Diameter: Ø 15 mm
• Compatible Optics Thickness: 5 mm
• Clear Aperture: Ø 12 mm
• Weight: 0.011 kg

• Filter case can be mounted with or dismounted from lens holder while the lens is mounted on lens holder.
• Mountable diameter of optics is as same as the diameter of the lens holder’s compatible optics diameter. (Except OSE-LHGC-10 and OSE-LHGC-15)
• Multiple filter cases can be jointed when the same diameter filter cases are used.
• It allows to use as a filter mount to arrange the combinations of the filters

Attention:

• Filter case may not be mounted on lens holder when the thick lens is fixed on the lens holder.
• The thread depth must be 3 mm or deeper to mount the filter case with lens holder

• Compatible Optics Diameter: Ø 20 mm
• Compatible Optics Thickness: 5 mm
• Clear Aperture: Ø 17 mm
• Weight: 0.007 kg

• Filter case can be mounted with or dismounted from lens holder while the lens is mounted on lens holder.
• Mountable diameter of optics is as same as the diameter of the lens holder’s compatible optics diameter. (Except OSE-LHGC-10 and OSE-LHGC-15)
• Multiple filter cases can be jointed when the same diameter filter cases are used.
• It allows to use as a filter mount to arrange the combinations of the filters

Attention:

• Filter case may not be mounted on lens holder when the thick lens is fixed on the lens holder.
• The thread depth must be 3 mm or deeper to mount the filter case with lens holder.

• Compatible Optics Diameter: Ø 25.4 mm
• Compatible Optics Thickness: 5 mm
• Clear Aperture: Ø 22 mm
• Weight: 0.008 kg

• Filter case can be mounted with or dismounted from lens holder while the lens is mounted on lens holder.
• Mountable diameter of optics is as same as the diameter of the lens holder’s compatible optics diameter. (Except OSE-LHGC-10 and OSE-LHGC-15)
• Multiple filter cases can be jointed when the same diameter filter cases are used.
• It allows to use as a filter mount to arrange the combinations of the filters

Attention:

• Filter case may not be mounted on lens holder when the thick lens is fixed on the lens holder.
• The thread depth must be 3 mm or deeper to mount the filter case with lens holder.

• Compatible Optics Diameter: Ø 30 mm
• Compatible Optics Thickness: 5 mm
• Clear Aperture: Ø 27 mm
• Weight: 0.012 kg

• Filter case can be mounted with or dismounted from lens holder while the lens is mounted on lens holder.
• Mountable diameter of optics is as same as the diameter of the lens holder’s compatible optics diameter. (Except OSE-LHGC-10 and OSE-LHGC-15)
• Multiple filter cases can be jointed when the same diameter filter cases are used.
• It allows to use as a filter mount to arrange the combinations of the filters

Attention:

• Filter case may not be mounted on lens holder when the thick lens is fixed on the lens holder.
• The thread depth must be 3 mm or deeper to mount the filter case with lens holder.

• Compatible Optics Diameter: Ø 50.8 mm
• Compatible Optics Thickness: 5 mm
• Clear Aperture: Ø 47 mm
• Weight: 0.018 kg

• Filter case can be mounted with or dismounted from lens holder while the lens is mounted on lens holder.
• Mountable diameter of optics is as same as the diameter of the lens holder’s compatible optics diameter. (Except OSE-LHGC-10 and OSE-LHGC-15)
• Multiple filter cases can be jointed when the same diameter filter cases are used.
• It allows to use as a filter mount to arrange the combinations of the filters

Attention:

• Filter case may not be mounted on lens holder when the thick lens is fixed on the lens holder.
• The thread depth must be 3 mm or deeper to mount the filter case with lens holder.
