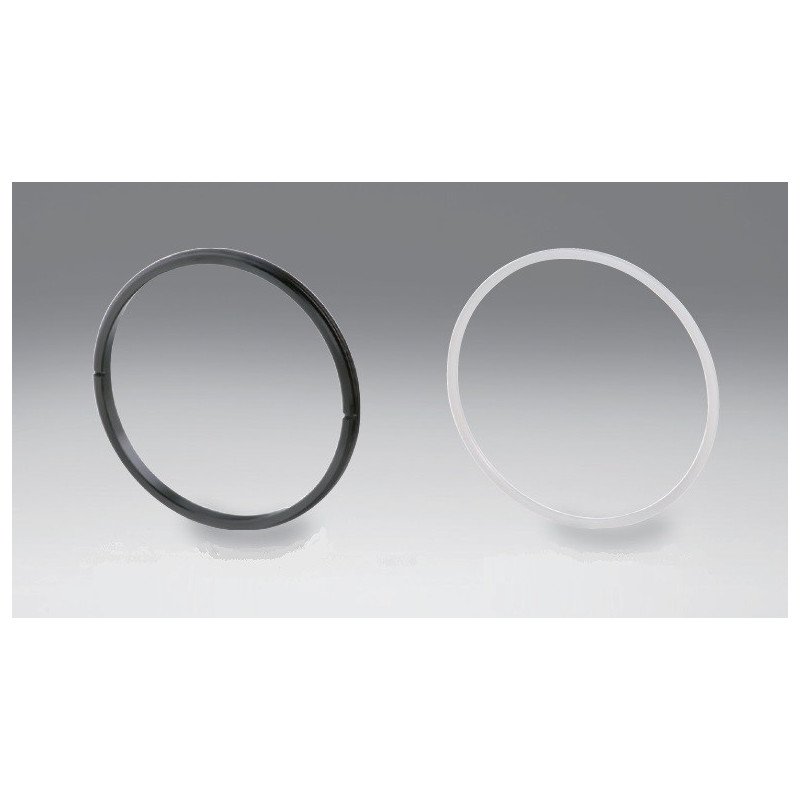

OSE-DR: Delrin Washers, Accessory

Reference number: OSE-DR-10-5

Outer Diameter in mm

Outer Diameter in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 10
Inner diameter ?B [mm]: 7
Thickness C [mm]: 1

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 12.7
Inner diameter ?B [mm]: 9.7
Thickness C [mm]: 1

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 15
Inner diameter ?B [mm]: 12
Thickness C [mm]: 1

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 20
Inner diameter ?B [mm]: 17
Thickness C [mm]: 1

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 25
Inner diameter ?B [mm]: 22
Thickness C [mm]: 1

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 25.4
Inner diameter ?B [mm]: 22
Thickness C [mm]: 1

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 30
Inner diameter ?B [mm]: 27
Thickness C [mm]: 1

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 38.1
Inner diameter ?B [mm]: 35
Thickness C [mm]: 1

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 40
Inner diameter ?B [mm]: 37
Thickness C [mm]: 1

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 50
Inner diameter ?B [mm]: 46
Thickness C [mm]: 1

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 50.8
Inner diameter ?B [mm]: 47
Thickness C [mm]: 1

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 52
Inner diameter ?B [mm]: 48
Thickness C [mm]: 1

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1
Quantity [pieces]: 5
Outer diameter ?A [mm]: 60
Inner diameter ?B [mm]: 56
Thickness C [mm]: 1

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1.5
Quantity [pieces]: 5
Outer diameter ?A [mm]: 80
Inner diameter ?B [mm]: 75
Thickness C [mm]: 1.5

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 1.5
Quantity [pieces]: 5
Outer diameter ?A [mm]: 100
Inner diameter ?B [mm]: 95
Thickness C [mm]: 1.5

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 2
Quantity [pieces]: 5
Outer diameter ?A [mm]: 130
Inner diameter ?B [mm]: 124
Thickness C [mm]: 2

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip

Screw pitch: 2
Quantity [pieces]: 5
Outer diameter ?A [mm]: 150
Inner diameter ?B [mm]: 144
Thickness C [mm]: 2

Downloads

OSE-RR_DR_NRS.pdf

Holders.zip
