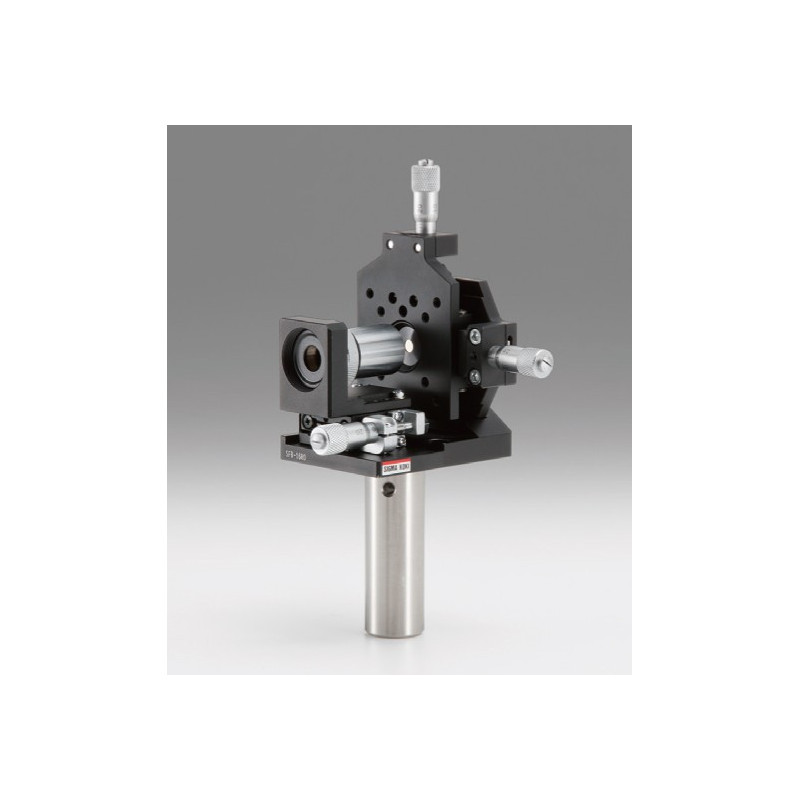

OSE-SFB: OSE-SFB-16RO-OBL10-25: Spatial Filter Holders

Reference number: OSE-SFB-16RO-OBL10-25

Objective Lens Length A in mm

Type

Objective Lens Length A in mm

Type

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Pinhole diameter [?m]: 25
Front and back adjustment range: 3
Pinhole XY scale min reading [mm/DIV]: 0.01
Objective lens front and back scale min reading: 0.01
Pinhole XY adjustment range [mm]: 2
Compatible incidence beam diameter?1/e²?: 1
Primary material: Steel, Aluminum
Finish: Super Black Chrome, Black Anodized
Weight [kg]: 0.56
A [mm]: 30.5
Objective lens: OBL-10

Downloads

OSE-SFB-16RO-OBL10-25_STP.zip

OSE-SFB.pdf

Holders.zip

Pinhole diameter [?m]: 25
Front and back adjustment range: 3
Pinhole XY scale min reading [mm/DIV]: 0.01
Objective lens front and back scale min reading: 0.01
Pinhole XY adjustment range [mm]: 2
Compatible incidence beam diameter?1/e²?: 0.6
Primary material: Steel, Aluminum
Finish: Super Black Chrome, Black Anodized
Weight [kg]: 0.56
A [mm]: 35.2
Objective lens: OBL-20

Downloads

OSE-SFB-16RO-OBL20-25_STP.zip

OSE-SFB.pdf

Holders.zip

Pinhole diameter [?m]: 25
Front and back adjustment range: 3
Pinhole XY scale min reading [mm/DIV]: 0.01
Objective lens front and back scale min reading: 0.01
Pinhole XY adjustment range [mm]: 2
Compatible incidence beam diameter?1/e²?: 0.3
Primary material: Steel, Aluminum
Finish: Super Black Chrome, Black Anodized
Weight [kg]: 0.56
A [mm]: 36.4
Objective lens: OBL-40

Downloads

OSE-SFB-16RO-OBL40-25_STP.zip

OSE-SFB.pdf

Holders.zip

Pinhole diameter [?m]: 25
Front and back adjustment range: 3
Pinhole XY scale min reading [mm/DIV]: 0.0025
Objective lens front and back scale min reading: 0.01
Pinhole XY adjustment range [mm]: 2
Compatible incidence beam diameter?1/e²?: 1
Primary material: Steel, Aluminum
Finish: Super Black Chrome, Black Anodized
Weight [kg]: 0.6
A [mm]: 30.5
Objective lens: OBL-10

Downloads

OSE-SFB-16DMRO-OBL10-25_STP.zip

OSE-SFB.pdf

Holders.zip

Pinhole diameter [?m]: 25
Front and back adjustment range: 3
Pinhole XY scale min reading [mm/DIV]: 0.0025
Objective lens front and back scale min reading: 0.01
Pinhole XY adjustment range [mm]: 2
Compatible incidence beam diameter?1/e²?: 0.6
Primary material: Steel, Aluminum
Finish: Super Black Chrome, Black Anodized
Weight [kg]: 0.6
A [mm]: 35.2
Objective lens: OBL-20

Downloads

OSE-SFB-16DMRO-OBL20-25_STP.zip

OSE-SFB.pdf

Holders.zip

Pinhole diameter [?m]: 25
Front and back adjustment range: 3
Pinhole XY scale min reading [mm/DIV]: 0.0025
Objective lens front and back scale min reading: 0.01
Pinhole XY adjustment range [mm]: 2
Compatible incidence beam diameter?1/e²?: 0.3
Primary material: Steel, Aluminum
Finish: Super Black Chrome, Black Anodized
Weight [kg]: 0.6
A [mm]: 36.4
Objective lens: OBL-20

Downloads

OSE-SFB-16DMRO-OBL40-25_STP.zip

OSE-SFB.pdf

Holders.zip
