Optics & Optomechanics
Optomechanics
Holders

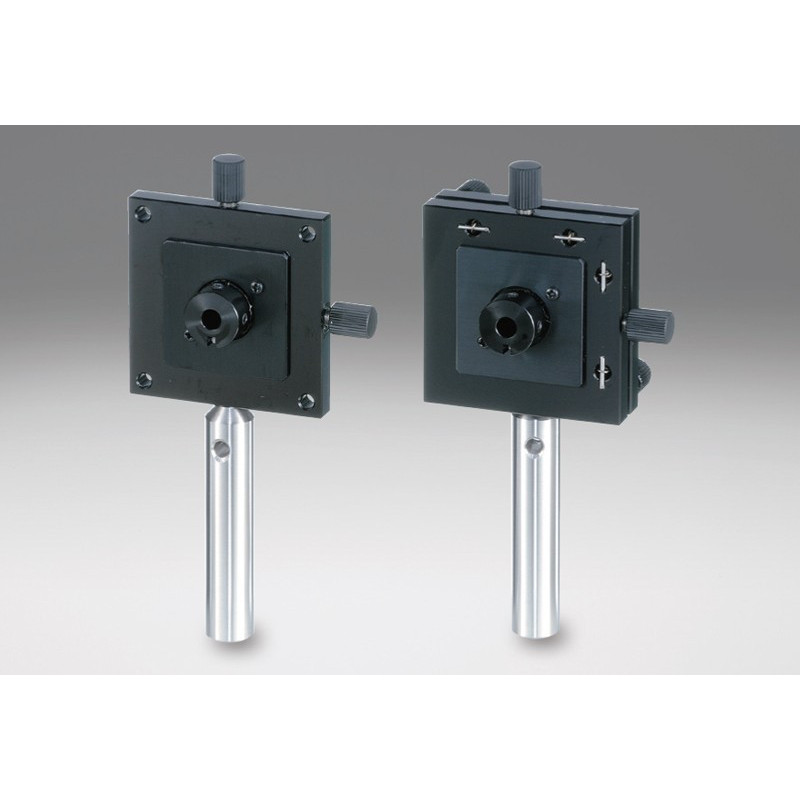

OSE-OFH: OSE-OFH-1: Fiber Optics Holders

OSE-OFH: OSE-OFH-1: Fiber Optics Holders

Reference number: OSE-OFH-1

Option

Adjustment Range Tilt in °

Option

Adjustment Range Tilt in °

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

I am interested in:

an offer

information material

a call and advice

*Required field

reCAPTCHA

Write your question

Email address^*

Message^*

^* Required fields

Question sent

Your question has been sent!

Your question cannot be sent!

Description

Centering adjustment range: 1.25
Focus adjustment range: ±1.25
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.12
Compatible holders: LAH-4TS-35?LAH-4TS-45?KLH-BE-M34

Downloads

OSE-OFH-1_STP.zip

OSE-OFH_OFH-DM.pdf

Holders.zip

Centering adjustment range: 1.25
Focus adjustment range: ±1.25
Fine adjustment range /tilt [°/rotation]: 2
Fine adjustment range /rotation [°/rotation]: 2
Resolution /tilt [°/rotation]: about 0.7
Resolution /rotation [°/rotation]: about 0.7
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.15

Downloads

OSE-OFH-2_STP.zip

OSE-OFH_OFH-DM.pdf

Holders.zip

Centering adjustment range: 1.25
Centering adjustment resolution [mm/rotation]: 0.05
Focus adjustment range: ±1.25
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.14

Downloads

OSE-OFH-1DM_STP.zip

OSE-OFH_OFH-DM.pdf

Holders.zip

Centering adjustment range: 1.25
Centering adjustment resolution [mm/rotation]: 0.05
Focus adjustment range: ±1.25
Fine adjustment range /tilt [°/rotation]: 2
Fine adjustment range /rotation [°/rotation]: 2
Resolution /tilt [°/rotation]: about 0.7
Resolution /rotation [°/rotation]: about 0.7
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.17

Downloads

OSE-OFH-2DM_STP.zip

OSE-OFH_OFH-DM.pdf

Holders.zip
