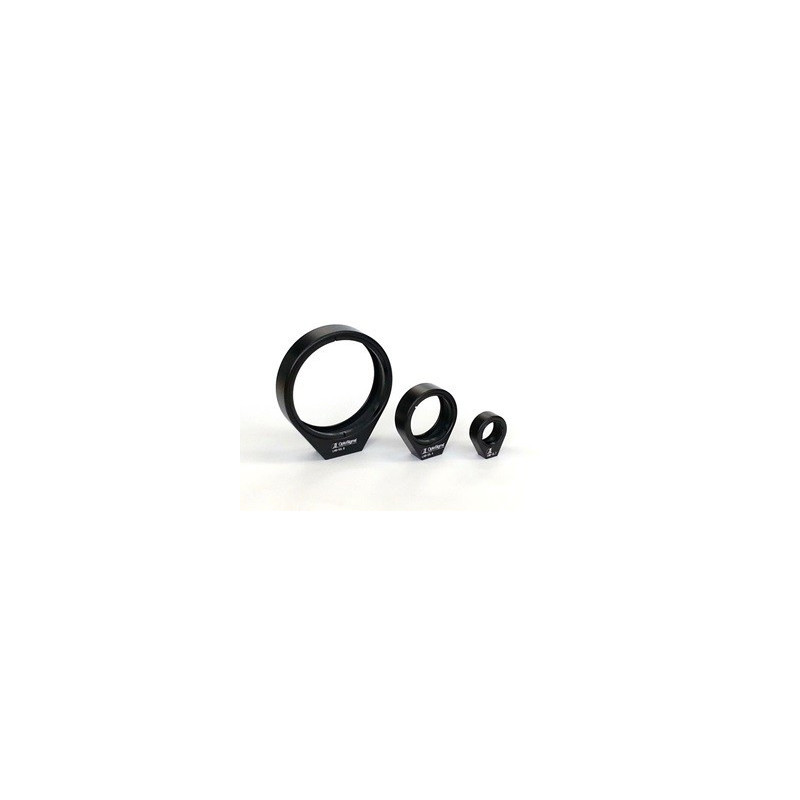

OSE-LHG: Thin and Low Profile Lens Holders, D: 12.7mm

Reference number: OSE-LHG-12.7

Option

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 2 - 5.4
Clear/input aperture: 11.5
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.0032
Height optical axis [mm]: 12.7
Screw diameter and pitch: M13.55 P0.75

Downloads

OSE-LHG-12.7_STP.zip

OSE-LHG.pdf

Holders.zip

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 2 - 7
Clear/input aperture: 17.5
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.0088
Height optical axis [mm]: 20
Screw diameter and pitch: M20.85 P0.75

Downloads

OSE-LHG-20_STP.zip

OSE-LHG.pdf

Holders.zip

Compatible optics diameter [mm]: 25, 25,4
Compatible optic thickness [mm]: 2 - 7
Clear/input aperture: 23
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.0085
Height optical axis [mm]: 20
Screw diameter and pitch: M26.25 P0.75

Downloads

OSE-LHG-25.4_STP.zip

OSE-LHG.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 2 - 7
Clear/input aperture: 27
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.012
Height optical axis [mm]: 25
Screw diameter and pitch: M30.85 P0.75

Downloads

OSE-LHG-30_STP.zip

OSE-LHG.pdf

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 2 - 9
Clear/input aperture: 46
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.0263
Height optical axis [mm]: 35
Screw diameter and pitch: M50.85 P0.75

Downloads

OSE-LHG-50_STP.zip

OSE-LHG.pdf

Holders.zip

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 2 - 9
Clear/input aperture: 47
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.024
Height optical axis [mm]: 35
Screw diameter and pitch: M51.65 P0.75

Downloads

OSE-LHG-50.8_STP.zip

OSE-LHG.pdf

Holders.zip
