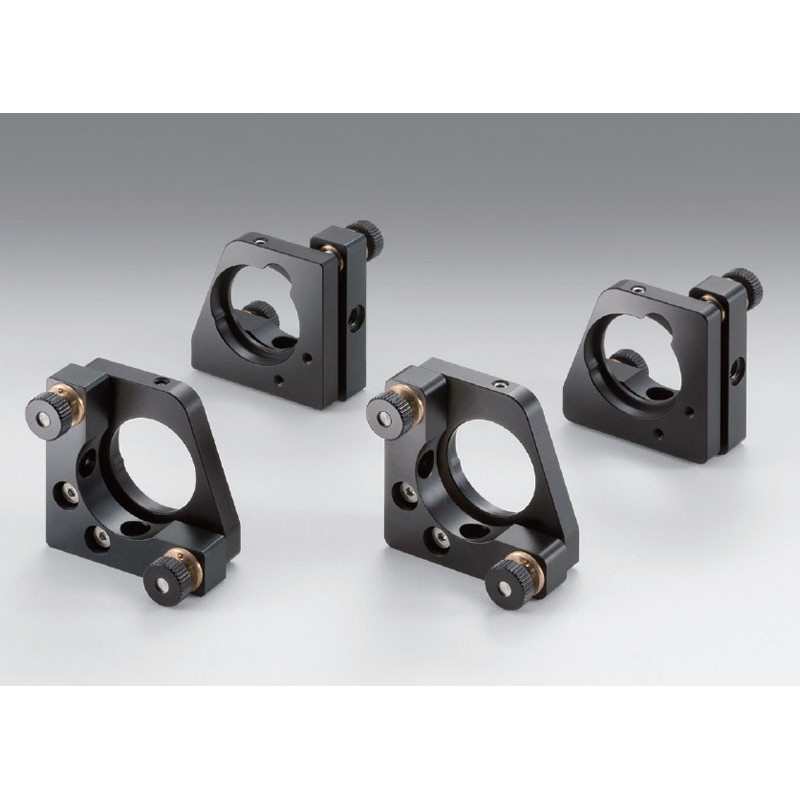

OSE-MHGT: Kinematic Mirror Mount, D: 12.7mm

Reference number: OSE-MHGT-12.7

Option

Compatible Optics Diameter

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.74
Resolution /rotation [°/rotation]: about 0.74
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.013
A [mm]: 12.7
B [mm]: 10
Number of adjustment axes: 2 points

Downloads

OSE-MHGT-12.7_STP.zip

OSE-MHGT.pdf

Holders.zip

Compatible optics diameter [mm]: 25, 25,4
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.067
B [mm]: 22
Number of adjustment axes: 2 points

Downloads

OSE-MHGT-25.4_STP.zip

OSE-MHGT.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.067
B [mm]: 27
Number of adjustment axes: 2 points

Downloads

OSE-MHGT-30_STP.zip

OSE-MHGT.pdf

Holders.zip

Compatible optics diameter [mm]: 25, 25,4
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.067
B [mm]: 22
Number of adjustment axes: 2 points

Downloads

OSE-MHGT-25.4-UU_STP.zip

OSE-MHGT.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.067
B [mm]: 27
Number of adjustment axes: 2 points

Downloads

OSE-MHGT-30-UU_STP.zip

OSE-MHGT.pdf

Holders.zip
