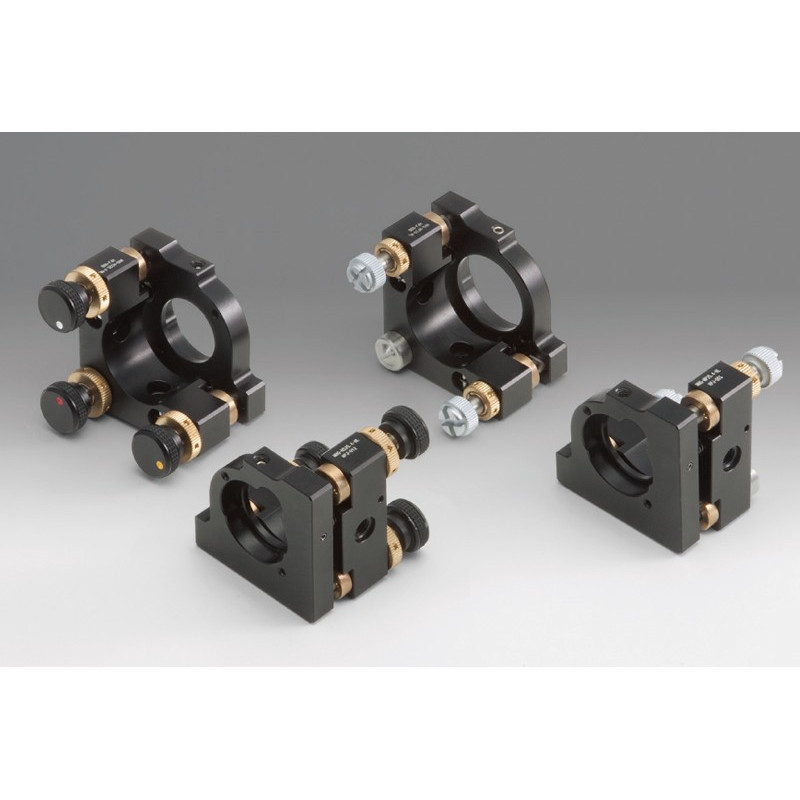

OSE-MHG-MP-NL/OSE-MHG-HS-NL: NOMI LOCK™ Model Kinematic Mirror Holder, D: 12.7mm

Reference number: OSE-MHG-MP12.7-NL

Option

Compatible Optics Diameter

Option

Compatible Optics Diameter

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.74
Resolution /rotation [°/rotation]: about 0,74
Primary material: Brass
Finish: Super Black Chrome
Weight [kg]: 0.04
Number of adjustment axes: 3

Downloads

OSE-MHG-MP12.7-NL_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.12
Number of adjustment axes: 2

Downloads

OSE-MHG-MP20-NL_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.12
Number of adjustment axes: 3

Downloads

OSE-MHG-HS20-NL_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 25, 25,4
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.12
Number of adjustment axes: 2

Downloads

OSE-MHG-MP25-NL_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 25, 25,4
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.12
Number of adjustment axes: 3

Downloads

OSE-MHG-HS25-NL_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.12
Number of adjustment axes: 2

Downloads

OSE-MHG-MP30-NL_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.12
Number of adjustment axes: 3

Downloads

OSE-MHG-HS30-NL_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 5 - 8
Fine adjustment range /tilt [°/rotation]: 2
Fine adjustment range /rotation [°/rotation]: 2
Resolution /tilt [°/rotation]: about 0.26
Resolution /rotation [°/rotation]: about 0.26
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.24
Number of adjustment axes: 2

Downloads

OSE-MHG-MP50-NL_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 5 - 8
Fine adjustment range /tilt [°/rotation]: 2
Fine adjustment range /rotation [°/rotation]: 2
Resolution /tilt [°/rotation]: about 0.26
Resolution /rotation [°/rotation]: about 0.26
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.24
Number of adjustment axes: 2

Downloads

OSE-MHG-MP50.8-NL_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 80
Compatible optic thickness [mm]: 7 - 12
Fine adjustment range /tilt [°/rotation]: 2
Fine adjustment range /rotation [°/rotation]: 2
Resolution /tilt [°/rotation]: about 0.18
Resolution /rotation [°/rotation]: about 0.18
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.38
Number of adjustment axes: 2

Downloads

OSE-MHG-MP80-NL_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 100, 101,6
Compatible optic thickness [mm]: 10 - 15
Fine adjustment range /tilt [°/rotation]: 2
Fine adjustment range /rotation [°/rotation]: 2
Resolution /tilt [°/rotation]: about 0.13
Resolution /rotation [°/rotation]: about 0.13
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.56
Number of adjustment axes: 2

Downloads

OSE-MHG-MP100-NL_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.12
Number of adjustment axes: 3

Downloads

OSE-MHG-HS20-NL-UU_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 25, 25,4
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.12
Number of adjustment axes: 3

Downloads

OSE-MHG-HS25-NL-UU_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.12
Number of adjustment axes: 3

Downloads

OSE-MHG-HS30-NL-UU_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.12
Number of adjustment axes: 2

Downloads

OSE-MHG-MP20-NL-UU_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 25, 25,4
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.12
Number of adjustment axes: 2

Downloads

OSE-MHG-MP25-NL-UU_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 5
Fine adjustment range /tilt [°/rotation]: 3
Fine adjustment range /rotation [°/rotation]: 3
Resolution /tilt [°/rotation]: about 0.39
Resolution /rotation [°/rotation]: about 0.39
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.12
Number of adjustment axes: 2

Downloads

OSE-MHG-MP30-NL-UU_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 5 - 8
Fine adjustment range /tilt [°/rotation]: 2
Fine adjustment range /rotation [°/rotation]: 2
Resolution /tilt [°/rotation]: about 0.26
Resolution /rotation [°/rotation]: about 0.26
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.24
Number of adjustment axes: 2

Downloads

OSE-MHG-MP50-NL-UU_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 5 - 8
Fine adjustment range /tilt [°/rotation]: 2
Fine adjustment range /rotation [°/rotation]: 2
Resolution /tilt [°/rotation]: about 0.26
Resolution /rotation [°/rotation]: about 0.26
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.24
Number of adjustment axes: 2

Downloads

OSE-MHG-MP50.8-NL-UU_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 80
Compatible optic thickness [mm]: 7 - 12
Fine adjustment range /tilt [°/rotation]: 2
Fine adjustment range /rotation [°/rotation]: 2
Resolution /tilt [°/rotation]: about 0.18
Resolution /rotation [°/rotation]: about 0.18
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.38
Number of adjustment axes: 2

Downloads

OSE-MHG-MP80-NL-UU_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip

Compatible optics diameter [mm]: 100, 101,6
Compatible optic thickness [mm]: 10 - 15
Fine adjustment range /tilt [°/rotation]: 2
Fine adjustment range /rotation [°/rotation]: 2
Resolution /tilt [°/rotation]: about 0.13
Resolution /rotation [°/rotation]: about 0.13
Primary material: Aluminum
Finish: Black Anodized
Weight [kg]: 0.56
Number of adjustment axes: 2

Downloads

OSE-MHG-MP100-NL_STP.zip

OSE-MHG-MP-NL_MHG-HS-NL.pdf

Holders.zip
