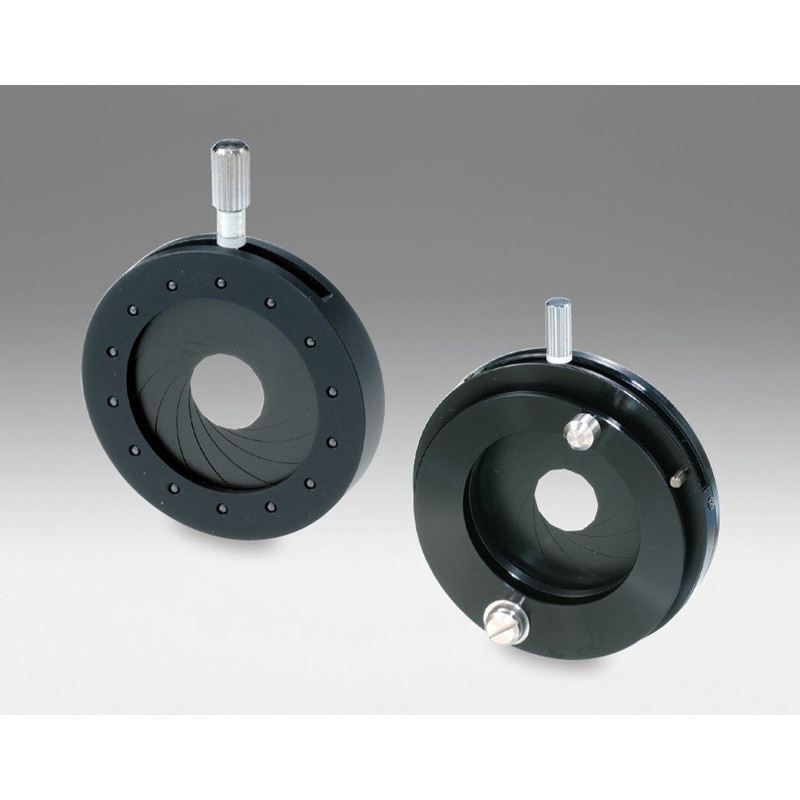

OSE-IDC: Iris Diaphragm Holder, D: max 8 min 0,7mm

Reference number: OSE-IDC-000

MAX Aperture Diameter in mm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Compatible optics diameter [mm]: max 8 min 0,7
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.03
A [mm]: 14.8
L [mm]: 11
S [mm]: 1.3
T [mm]: 4.5
Number of blades: 9

Downloads

OSE-IDC-000_STP.zip

OSE-IDC_IH-30N.pdf

Holders.zip

Compatible optics diameter [mm]: max 12 min 0,8
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.005
A [mm]: 19.8
L [mm]: 11
S [mm]: 1.25
T [mm]: 5
Number of blades: 11

Downloads

OSE-IDC-001_STP.zip

OSE-IDC_IH-30N.pdf

Holders.zip

Compatible optics diameter [mm]: max 15 min 0,9
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.007
A [mm]: 24
L [mm]: 11
S [mm]: 1.45
T [mm]: 5
Number of blades: 12

Downloads

OSE-IDC-003_STP.zip

OSE-IDC_IH-30N.pdf

Holders.zip

Compatible optics diameter [mm]: max 22 min 0,9
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.012
A [mm]: 33
L [mm]: 11
S [mm]: 1.43
T [mm]: 5.5
Number of blades: 14

Downloads

OSE-IDC-009_STP.zip

OSE-IDC_IH-30N.pdf

Holders.zip

Compatible optics diameter [mm]: max 36 min 1,3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.024
A [mm]: 50
L [mm]: 15
S [mm]: 1.6
T [mm]: 6
Number of blades: 16

Downloads

OSE-IDC-017_STP.zip

OSE-IDC_IH-30N.pdf

Holders.zip

Compatible optics diameter [mm]: max 50 min 1,5
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.062
A [mm]: 70
L [mm]: 15
S [mm]: 2.05
T [mm]: 7.5
Number of blades: 16

Downloads

OSE-IDC-025_STP.zip

OSE-IDC_IH-30N.pdf

Holders.zip
