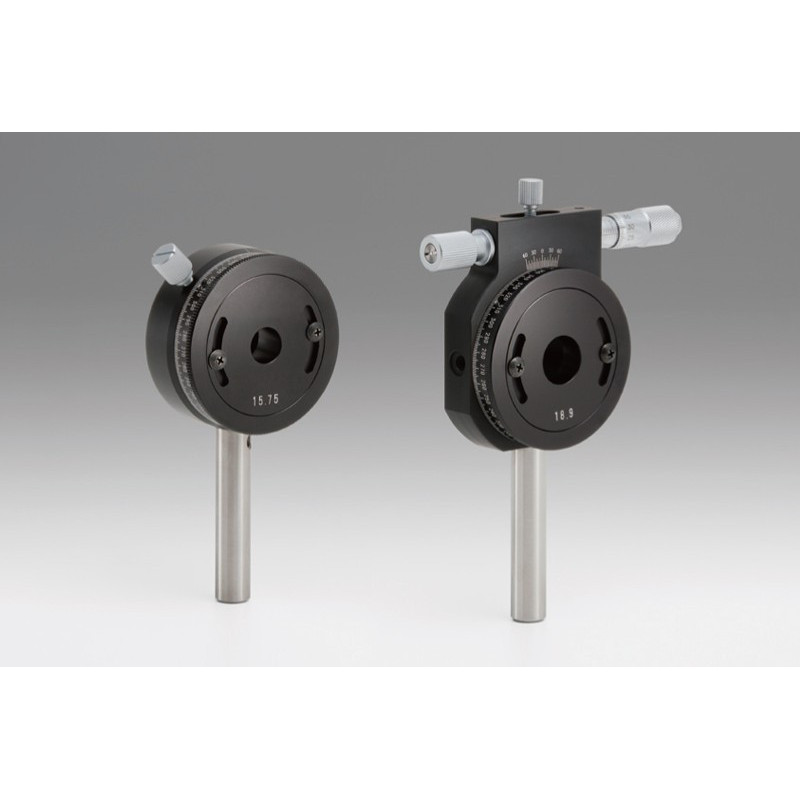

OSE-GTPC-ADP: Adapters, D: 15mm

Reference number: OSE-GTPC-ADP15-29

Compatible Optics Thickness in mm

Compatible Optics Diameter

Compatible Optics Thickness in mm

Compatible Optics Diameter

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Compatible optics diameter [mm]: 15
Compatible optic thickness [mm]: 15 - 29
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.25
F [mm]: 15
G [mm]: 34
H [mm]: 12
I [mm]: 39
J [mm]: 47
K [mm]: 33.5
L [mm]: 19
Compatible Glan-Thompson prism part number: GTPC-06/GTPC-06

Downloads

OSE-GTPC-ADP15-29_STP.zip

OSE-GTPC-PH_GTPC-SPH_GTPC-ADP.pdf

Holders.zip

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 31 - 38
Primary material: Aluminium
Finish: Black Anodized
F [mm]: 25.4
G [mm]: 34
H [mm]: 22
I [mm]: 39
J [mm]: 47
K [mm]: 42.5
L [mm]: 27
Compatible Glan-Thompson prism part number: GTPC-10-33SN

Downloads

OSE-GTPC-ADP25.4-38_STP.zip

OSE-GTPC-PH_GTPC-SPH_GTPC-ADP.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 23 - 39
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.21
F [mm]: 30
G [mm]: 34
H [mm]: 27
I [mm]: 39
J [mm]: 47
K [mm]: 43.5
L [mm]: 21
Compatible Glan-Thompson prism part number: GTPB-15-32.5SN

Downloads

OSE-GTPC-ADP30-39_STP.zip

OSE-GTPC-PH_GTPC-SPH_GTPC-ADP.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 39 - 53
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.22
F [mm]: 30
G [mm]: 34
H [mm]: 27
I [mm]: 39
J [mm]: 47
K [mm]: 57.5
L [mm]: 19
Compatible Glan-Thompson prism part number: GTPC-15-45.5SN/GTPC-15-53SN

Downloads

OSE-GTPC-ADP30-53_STP.zip

OSE-GTPC-PH_GTPC-SPH_GTPC-ADP.pdf

Holders.zip

Compatible optics diameter [mm]: 38
Compatible optic thickness [mm]: 28 - 48.9
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.41
F [mm]: 38.1
G [mm]: 54
H [mm]: 35
I [mm]: 60
J [mm]: 67
K [mm]: 53.5
L [mm]: 26
Compatible Glan-Thompson prism part number: GLPB2-20/GLP2-20

Downloads

OSE-GTPC-ADP38-49_STP.zip

OSE-GTPC-PH_GTPC-SPH_GTPC-ADP.pdf

Holders.zip
