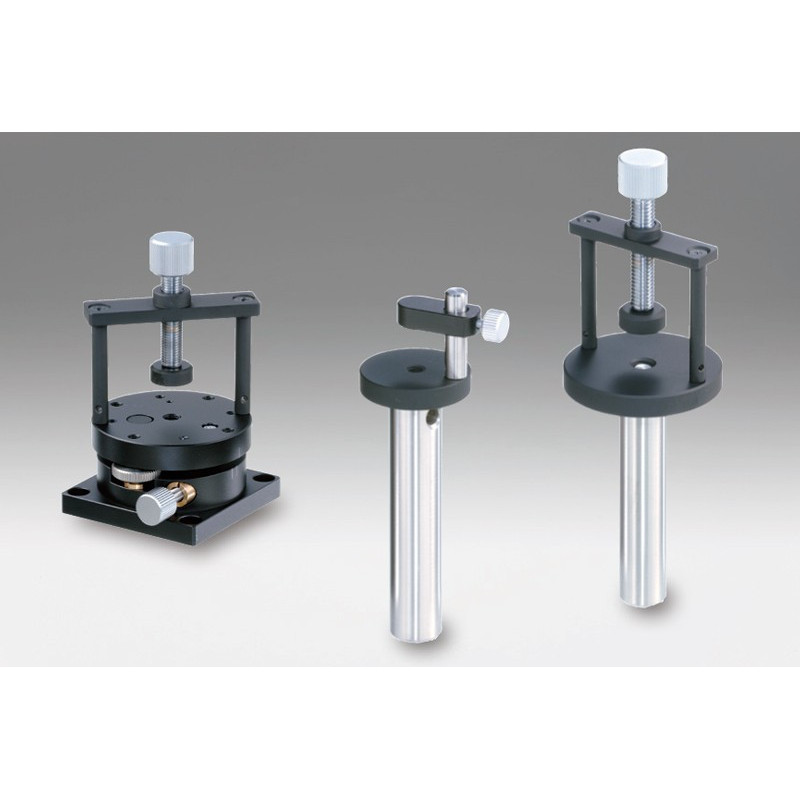

Prism Holders, D: 5 - 26mm

search

Reference number: OSE-KKD-40PH-UU

alt

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

  • Compatible optics diameter [mm]: 5 - 26
  • Adjustment range tilt ±[mm]: 3
  • Adjustment range rotation ±[mm]: 3
  • Coarse resolution /tilt [°/rotation]: about 1.5
  • Coarse resolution /rotation [°/rotation]: about 2.0
  • Primary material: Aluminium
  • Finish: Black Anodized
  • Weight [kg]: 0.2
