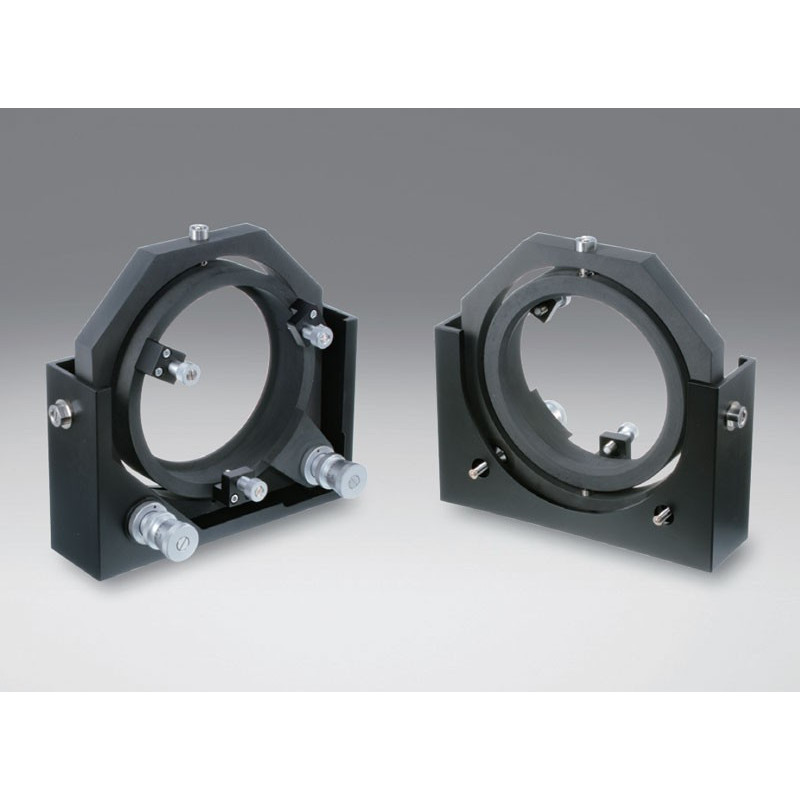

OSE-MHD-P: OSE-MHD-P: Plates for Larger Precision Gimbal Mirror holder

Reference number: OSE-MHD-100PEE

€74.20

Tax excluded

Option

Compatible Optics Diameter

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Those products may also interest you

OSE-MHAN-M: Gimballed Mirror Mounts

OSE-MHAN-M

€235.90
OSE-MHAN-S: Gimballed Mirror Mounts

OSE-MHAN-S

€186.70
OSE-MHAN-EE: Gimballed Mirror Mounts

OSE-MHAN-EE

€226.30
OSE-MHA: Gimballed Mirror Mounts

OSE-MHA

€377.20
OSE-MHAN-DM: Gimballed Mirror Mounts

OSE-MHAN-DM

€364.90

Primary material: Aluminium
Finish: Black Anodized
A [mm]: 180
B [mm]: 100
C [mm]: 25
D [mm]: 90
E [mm]: 75
G [mm]: 150
H [mm]: M6 P1
Compatible holders: MHD-100, MHD-101.6

Downloads

OSE-MHD-100PEE_STP.zip

OSE-MHD.pdf

Holders.zip

Primary material: Aluminium
Finish: Black Anodized
A [mm]: 240
B [mm]: 150
C [mm]: 25
D [mm]: 120
E [mm]: 100
G [mm]: 190
H [mm]: M6 P1
Compatible holders: MHD-150, MHD-152.4

Downloads

OSE-MHD-150PEE_STP.zip

OSE-MHD.pdf

Holders.zip

Primary material: Aluminium
Finish: Black Anodized
A [mm]: 295
B [mm]: 200
C [mm]: 25
D [mm]: 120
E [mm]: 100
G [mm]: 250
H [mm]: M6 P1
Compatible holders: MHD-200, MHD-203.2

Downloads

OSE-MHD-200PEE_STP.zip

OSE-MHD.pdf

Holders.zip

Primary material: Aluminium
Finish: Black Anodized
A [mm]: 348
B [mm]: 250
C [mm]: 25
D [mm]: 140
E [mm]: 125
G [mm]: 300
H [mm]: M6 P1
Compatible holders: MHD-254

Downloads

OSE-MHD-254PEE_STP.zip

OSE-MHD.pdf

Holders.zip

Primary material: Aluminium
Finish: Black Anodized
A [mm]: 180
B [mm]: 101.6
C [mm]: 25.4
D [mm]: 90
E [mm]: 76.2
G [mm]: 150
H [mm]: 1/4-20UNC
Compatible holders: MHD-100, MHD-101.6

Downloads

OSE-MHD-100PUU_STP.zip

OSE-MHD.pdf

Holders.zip

Primary material: Aluminium
Finish: Black Anodized
A [mm]: 240
B [mm]: 152.4
C [mm]: 25.4
D [mm]: 90
E [mm]: 76.2
G [mm]: 190
H [mm]: 1/4-20UNC
Compatible holders: MHD-150, MHD-152.4

Downloads

OSE-MHD-150PUU_STP.zip

OSE-MHD.pdf

Holders.zip

Primary material: Aluminium
Finish: Black Anodized
A [mm]: 295
B [mm]: 203.2
C [mm]: 25.4
D [mm]: 120
E [mm]: 101.6
G [mm]: 250
H [mm]: 1/4-20UNC
Compatible holders: MHD-200, MHD-203.2

Downloads

OSE-MHD-200PUU_STP.zip

OSE-MHD.pdf

Holders.zip

Primary material: Aluminium
Finish: Black Anodized
A [mm]: 348
B [mm]: 254
C [mm]: 25.4
D [mm]: 140
E [mm]: 127
G [mm]: 300
H [mm]: 1/4-20UNC
Compatible holders: MHD-254

Downloads

OSE-MHD-254PUU_STP.zip
